country_of_origin:
TW
manufacturer:
US Motors
mpn:
SV2E2D
Product Description

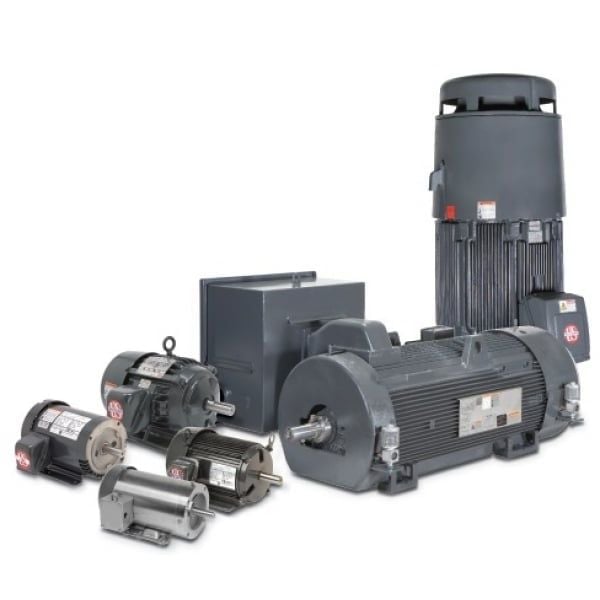

US Motors - SV2E2D
Features- Three Phase
- Refrigeration Duty
- Totally Enclosed Air Over (TEAO)
- 60/50 Hz Cycle
- Band and Rigid Base
Additional Information
PHASETYPE:3_POLYPHASE
MOTOR ENCLOSURE:TEAO
HORSEPOWER:2
KILOWATTS:1.5
POLES:4
NUMBER SPEEDS:1
RPM:1725
RPM 2:1425
HERTZ:60
HERTZ 2:50
VOLTS PRIMARY:208-230/460 V
VOLTS :208
VOLTS 2:230
VOLTS 3:460
FRME :56
SHAFT CODE:H
STATOR DIAMETER:6.3
STACK:4.5
MOUNTING:RIGID
MOTOR TYPE:FHP
OPPOSITE END BEARING:6205
SHAFT END BEARING:6203
AMBIENT:40
ROTATION:REVERSIBLE
SERVICE FACTOR:1.15
SHIPPING WEIGHT:26
THERMAL PROTECTION:AUTOMATIC RESET
BREAKDOWN TORQUE:333.1
BREAKDOWN TORQUE UOM:OZFT
LOCKED ROTOR TORQUE:216.1
LOCKED ROTOR TORQUE UOM:OZFT
INSULATION CLASS:F
KVA CODE LETTER:J
LOCKED ROTOR AMPS:31.56
NEMA NOMINAL EFFICIENCY:84
FULL LOAD AMPS PRIMARY:6.2/3.1
SERVICE FACTOR AMPS PRIMARY:6.4/3.2
