availability:
In stock
enclosure:
TEFC
frame:
56
horsepower:
0.5
mpn:
T12CM2J
phase:
1
rpm:
1400-1800
voltage:
100-120, 200-240

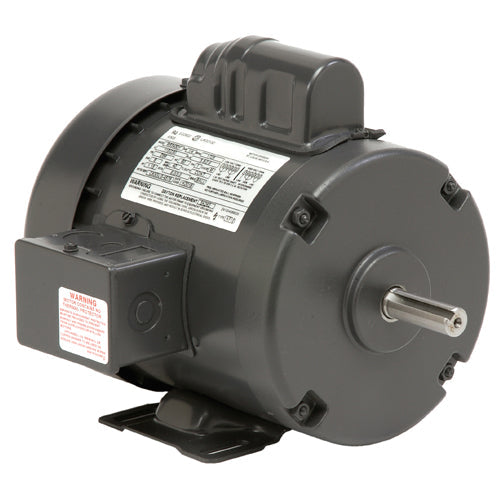

Product Description
- Capacitor Start
- General Purpose Single Phase
- Totally Enclosed Fan Cooled (TEFC)
- Rigid Base
- Reversible Rotation
Specifications
| Model_Number | C063JBP5258015B |
|---|---|
| PRODUCT NAME | .5 HP - TEFC - 1725 |
| PHASETYPE | 1_CAPACITOR START |
| MOTOR ENCLOSURE | TEFC |
| HORSEPOWER | .5 |
| KILOWATTS | 0.4 |
| POLES | 4 |
| NUMBER SPEEDS | 1 |
| RPM | 1725 |
| HERTZ | 60 |
| VOLTS PRIMARY | 115/208-230 V |
| VOLTS | 115 |
| VOLTS 2 | 208 |
| VOLTS 3 | 230 |
| FRME | 56 |
| STATOR DIAMETER | 6.3 |
| STACK | 1.5 |
| MOUNTING | RIGID BASE |
| MOTOR TYPE | FHP |
| OPPOSITE END BEARING | 6203 |
| SHAFT END BEARING | 6203 |
| AMBIENT | 40 |
| ROTATION | REVERSIBLE |
| SERVICE FACTOR | 1.15 |
| STARTCAPMFD | 357 |
| SHIPPING WEIGHT | 28 |
| THERMAL PROTECTION | MANUAL RESET |
| BREAKDOWN TORQUE | 71.51 |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE | 125.2 |
| LOCKED ROTOR TORQUE UOM | OZFT |
| INSULATION CLASS | B |
| KVA CODE LETTER | L |
| LOCKED ROTOR AMPS | 39.46 |
| NEMA NOMINAL EFFICIENCY | 60.7 |
| FULL LOAD AMPS PRIMARY | 9.0/4.3-4.5 |
| SERVICE FACTOR AMPS PRIMARY | 9.2/4.3-4.6 |
