availability:
In stock
frame:
56
horsepower:
0.25
mpn:
T14S3DCR
phase:
3
rpm:
950-1200
voltage:
200-240, 440-480

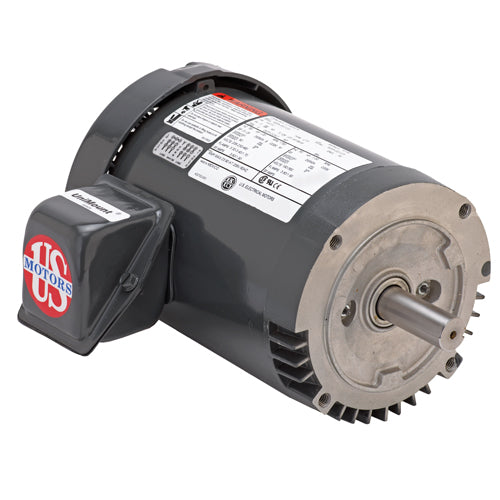

Product Description
- General Purpose
- Three Phase Totally Enclosed Fan Cooled (TEFC)
- Steel Frame
- Energy Efficient C Face
- C Face Footless
Specifications
| Model_Number | P063ECG3580025B |
|---|---|
| PRODUCT NAME | .25 HP - - 1140 |
| PHASETYPE | 3_PHASE |
| HORSEPOWER | .25 |
| KILOWATTS | 0.2 |
| POLES | 6 |
| NUMBER SPEEDS | 1 |
| RPM | 1140 |
| HERTZ | 60 |
| VOLTS PRIMARY | 208-230/460 |
| VOLTS | 208 |
| VOLTS 2 | 230 |
| VOLTS 3 | 460 |
| FRME | 56 |
| SHAFT CODE | C |
| STATOR DIAMETER | 6.3 |
| STACK | 1.75 |
| MOTOR TYPE | FHP |
| AMBIENT | 40 |
| ROTATION | CW/CCW |
| SERVICE FACTOR | 1.15 |
| SHIPPING WEIGHT | 27 |
| BREAKDOWN TORQUE | 89.58 |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE | 63.61 |
| LOCKED ROTOR TORQUE UOM | OZFT |
| KVA CODE LETTER | L |
| LOCKED ROTOR AMPS | 6.24 |
| NEMA NOMINAL EFFICIENCY | 75.5 |
| FULL LOAD AMPS PRIMARY | 1.4-1.4/0.7 |
| SERVICE FACTOR AMPS PRIMARY | 1.6-1.6/0.8 |
