availability:
In stock
frame:
56
horsepower:
1
mpn:
T1C2Z
phase:
1
rpm:
1400-1800
voltage:
100-120, 200-240

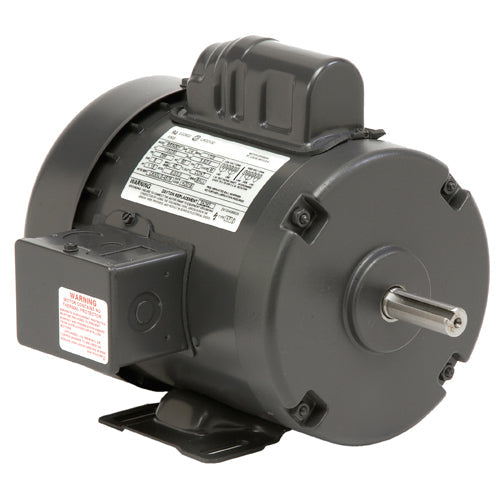

Product Description
- Capacitor Start
- General Purpose Single Phase
- Totally Enclosed Fan Cooled (TEFC)
- Rigid Base
- Reversible Rotation
Specifications
| Model_Number | T063CHS1899015B |
|---|---|
| PRODUCT NAME | 1 HP - - 1725 |
| PHASETYPE | 1_PHASE |
| HORSEPOWER | 1 |
| KILOWATTS | 0.8 |
| POLES | 4 |
| NUMBER SPEEDS | 1 |
| RPM | 1725 |
| RPM 2 | 1425 |
| HERTZ | 60 |
| HERTZ 2 | 50 |
| VOLTS PRIMARY | 100-120 |
| VOLTS | 100 |
| VOLTS 2 | 120 |
| VOLTS 4 | 200 |
| VOLTS 5 | 240 |
| FRME | 56 |
| STATOR DIAMETER | 6.3 |
| STACK | 3.75 |
| MOTOR TYPE | FHP |
| OPPOSITE END BEARING | 6203 |
| SHAFT END BEARING | 6203 |
| AMBIENT | 40 |
| ROTATION | REVERSIBLE |
| SERVICE FACTOR | 1.15 |
| RUNCAPMFD | 45 |
| RUNCAPVOLTS | 370 |
| STARTCAPMFD | 856 |
| SHIPPING WEIGHT | 32 |
| BREAKDOWN TORQUE | 101.5 |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE | 154.6 |
| LOCKED ROTOR TORQUE UOM | OZFT |
| KVA CODE LETTER | L |
| LOCKED ROTOR AMPS | 66.66 |
| FULL LOAD AMPS PRIMARY | 11.0-9.2/5.5-4.7 |
| SERVICE FACTOR AMPS PRIMARY | 12.9-10.6/6.4-5.3 |
