availability:
In stock
enclosure:
TEFC
frame:
56
horsepower:
0.75
mpn:
T34C3JCR
phase:
1
rpm:
950-1200
voltage:
100-120, 200-240

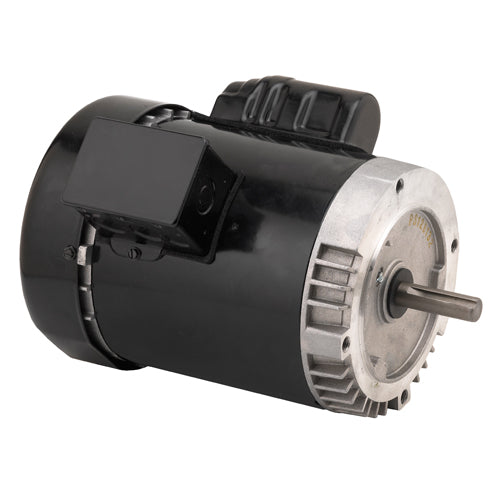

Product Description
- General Purpose
- Single Phase Capacitor Start
- Totally Enclosed Fan Cooled (TEFC)
- C Face Footless
Specifications
| Model_Number | T063DDZ1677015B |
|---|---|
| PRODUCT NAME | .75 HP - TEFC - 1140 |
| PHASETYPE | 1_CAPACITOR START - |
| MOTOR ENCLOSURE | TEFC |
| HORSEPOWER | .75 |
| KILOWATTS | 0.6 |
| POLES | 6 |
| NUMBER SPEEDS | 1 |
| RPM | 1140 |
| HERTZ | 60 |
| VOLTS PRIMARY | 115/208-230 V |
| VOLTS | 115 |
| VOLTS 2 | 208 |
| VOLTS 3 | 230 |
| FRME | 56 |
| SHAFT CODE | C |
| STATOR DIAMETER | 6.3 |
| STACK | 3.5 |
| MOUNTING | C-FACE |
| MOTOR TYPE | FHP |
| OPPOSITE END BEARING | 6203 |
| SHAFT END BEARING | 6203 |
| AMBIENT | 40 |
| ROTATION | REVERSIBLE |
| SERVICE FACTOR | 1.15 |
| RUNCAPMFD | 12.5 |
| RUNCAPVOLTS | 370 |
| STARTCAPMFD | 256 |
| SHIPPING WEIGHT | 28 |
| THERMAL PROTECTION | NONE |
| BREAKDOWN TORQUE | 150.4 |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE | 152.9 |
| LOCKED ROTOR TORQUE UOM | OZFT |
| INSULATION CLASS | B |
| KVA CODE LETTER | K |
| LOCKED ROTOR AMPS | 41.47 |
| NEMA NOMINAL EFFICIENCY | 70 |
| FULL LOAD AMPS PRIMARY | 10.6/5.4-5.3 |
| SERVICE FACTOR AMPS PRIMARY | 11.4/5.4-5.7 |
