availability:
In stock
enclosure:
TEFC
frame:
56
horsepower:
2.75
mpn:
TET275
phase:
1
rpm:
2800-3600
voltage:
200-240
Product Description

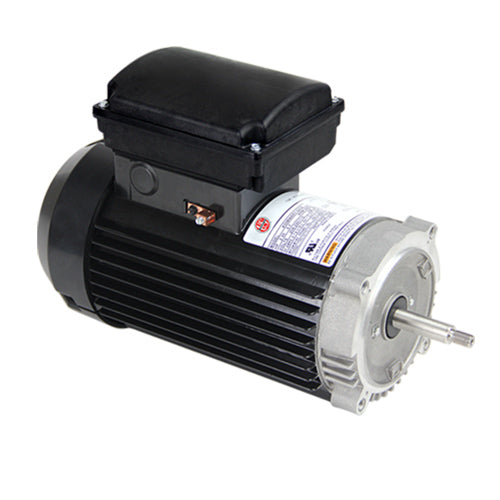

- AQUA-SHIELD PRO TEFC Pool & Spa Motor
- Switchless Design 5.5" Frame Dia.
- C-Flange Category "J"
- Finned Aluminum Frame IPX5
- THP Rated 1081 Design
Specifications
| Model_Number | K055KSA3376013J |
|---|---|
| PRODUCT NAME | 2.75 HP - TEFC - 3450 |
| PHASETYPE | 1_PERMANENT SPLIT CA |
| MOTOR ENCLOSURE | TEFC |
| HORSEPOWER | 2.75 |
| POLES | 2 |
| NUMBER SPEEDS | 1 |
| RPM | 3450 |
| HERTZ | 60 |
| VOLTS PRIMARY | 208-230 V |
| VOLTS | 208 |
| VOLTS 2 | 230 |
| FRME | 56 |
| SHAFT CODE | J |
| STATOR DIAMETER | 5.5 |
| STACK | 3.25 |
| MOUNTING | C-FACE |
| MOTOR TYPE | FHP |
| OPPOSITE END BEARING | 6203 |
| SHAFT END BEARING | 6203 |
| AMBIENT | 50 |
| ROTATION | CW LEAD END |
| SERVICE FACTOR | 1 |
| RUNCAPMFD | 50 |
| RUNCAPVOLTS | 370 |
| SHIPPING WEIGHT | 28 |
| THERMAL PROTECTION | AUTOMATIC RESET |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE UOM | OZFT |
| INSULATION CLASS | F |
| KVA CODE LETTER | G |
| FULL LOAD AMPS PRIMARY | 11.6-11.3 |
