availability:
In stock
frame:
56
horsepower:
0.5
mpn:
WD12S2A
phase:
3
rpm:
1400-1800
voltage:
200-240, 440-480

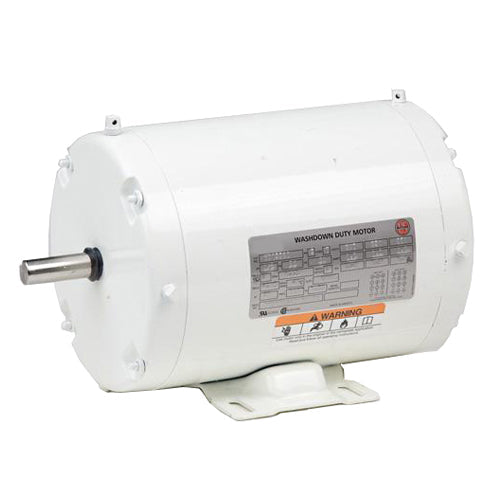

Product Description
- Special Application Washdown
- Three Phase Totally Enclosed
- Energy Efficient
- Footed
Specifications
| Model_Number | P063GBJ4448025B |
|---|---|
| PRODUCT NAME | .5 HP - - 1725 |
| PHASETYPE | 3_PHASE |
| HORSEPOWER | .5 |
| KILOWATTS | 0.4 |
| POLES | 4 |
| NUMBER SPEEDS | 1 |
| RPM | 1725 |
| HERTZ | 60 |
| VOLTS PRIMARY | 208-230/460 |
| VOLTS | 208 |
| VOLTS 2 | 230 |
| VOLTS 3 | 460 |
| FRME | 56 |
| STATOR DIAMETER | 6.3 |
| STACK | 1.75 |
| MOTOR TYPE | FHP |
| OPPOSITE END BEARING | 6203 |
| SHAFT END BEARING | 6203 |
| AMBIENT | 40 |
| ROTATION | REVERSIBLE |
| SERVICE FACTOR | 1.15 |
| SHIPPING WEIGHT | 26 |
| BREAKDOWN TORQUE | 115.6 |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE | 82.36 |
| LOCKED ROTOR TORQUE UOM | OZFT |
| KVA CODE LETTER | V |
| LOCKED ROTOR AMPS | 11.57 |
| NEMA NOMINAL EFFICIENCY | 80 |
| FULL LOAD AMPS PRIMARY | 1.9-1.8/0.9 |
| SERVICE FACTOR AMPS PRIMARY | 2.0-1.9/1.0 |
