availability:
In stock
frame:
56
horsepower:
1
mpn:
WD1S3AC
phase:
3
rpm:
950-1200
voltage:
200-240, 440-480

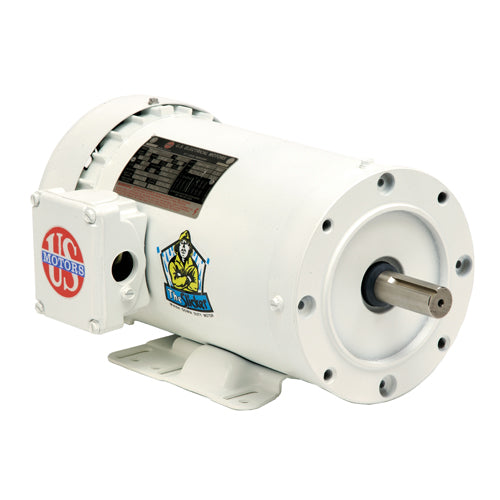

Product Description
- Special Application Washdown
- Three Phase Totally Enclosed
- Energy Efficient
- C Face Footed
Specifications
| Model_Number | P063EMC5039015B |
|---|---|
| PRODUCT NAME | 1 HP - - 1140 |
| PHASETYPE | 3_PHASE |
| HORSEPOWER | 1 |
| KILOWATTS | 0.8 |
| POLES | 6 |
| NUMBER SPEEDS | 1 |
| RPM | 1140 |
| HERTZ | 60 |
| VOLTS PRIMARY | 208-230/460 |
| VOLTS | 208 |
| VOLTS 2 | 230 |
| VOLTS 3 | 460 |
| FRME | 56 |
| SHAFT CODE | C |
| STATOR DIAMETER | 6.3 |
| STACK | 4.5 |
| MOTOR TYPE | WER |
| OPPOSITE END BEARING | 6205 |
| SHAFT END BEARING | 6203 |
| AMBIENT | 40 |
| ROTATION | REVERSIBLE |
| SERVICE FACTOR | 1.15 |
| SHIPPING WEIGHT | 32 |
| BREAKDOWN TORQUE | 309.8 |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE | 201 |
| LOCKED ROTOR TORQUE UOM | OZFT |
| KVA CODE LETTER | L |
| LOCKED ROTOR AMPS | 20.27 |
| NEMA NOMINAL EFFICIENCY | 82.5 |
| FULL LOAD AMPS PRIMARY | 3.8-3.8/1.8 |
| SERVICE FACTOR AMPS PRIMARY | 4.2-4.2/2.1 |
