availability:
In stock
frame:
145
horsepower:
1.5
mpn:
WD32P2A14
phase:
3
rpm:
1400-1800
voltage:
200-240, 440-480, 190, 380-415

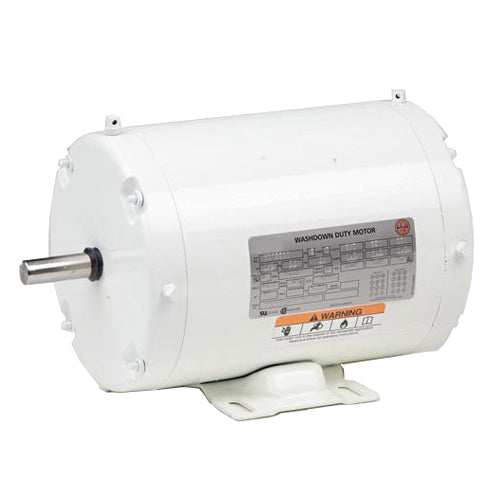

Product Description
- Special Application Washdown
- Three Phase Totally Enclosed
- Premium Efficient
- Footed
Specifications
| Model_Number | P063GCT4822R15B |
|---|---|
| PRODUCT NAME | 1.5 HP - - 1725 |
| PHASETYPE | 3_PHASE |
| HORSEPOWER | 1.5 |
| KILOWATTS | 1.1 |
| POLES | 4 |
| NUMBER SPEEDS | 1 |
| RPM | 1725 |
| RPM 2 | 1425 |
| HERTZ | 60 |
| HERTZ 2 | 50 |
| VOLTS PRIMARY | 208-230/460 |
| VOLTS | 208 |
| VOLTS 2 | 230 |
| VOLTS 3 | 460 |
| VOLTS 4 | 190 |
| VOLTS 5 | 380 |
| FRME | 145 |
| SHAFT CODE | T |
| STATOR DIAMETER | 6.3 |
| STACK | 3.25 |
| MOTOR TYPE | WERE |
| OPPOSITE END BEARING | 6205 |
| SHAFT END BEARING | 6203 |
| AMBIENT | 40 |
| ROTATION | REVERSIBLE |
| SERVICE FACTOR | 1.15 |
| SHIPPING WEIGHT | 36 |
| BREAKDOWN TORQUE | 332.6 |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE | 194.9 |
| LOCKED ROTOR TORQUE UOM | OZFT |
| KVA CODE LETTER | L |
| LOCKED ROTOR AMPS | 32.63 |
| NEMA NOMINAL EFFICIENCY | 86.5 |
| FULL LOAD AMPS PRIMARY | 4.5-4.5/2.2 & 4.5/2.2 |
| SERVICE FACTOR AMPS PRIMARY | 4.9-4.9/2.5 |
