availability:
In stock
enclosure:
TEFC
frame:
56
horsepower:
3
mpn:
WD3P1ACR
phase:
3
rpm:
2800-3600
voltage:
200-240, 440-480

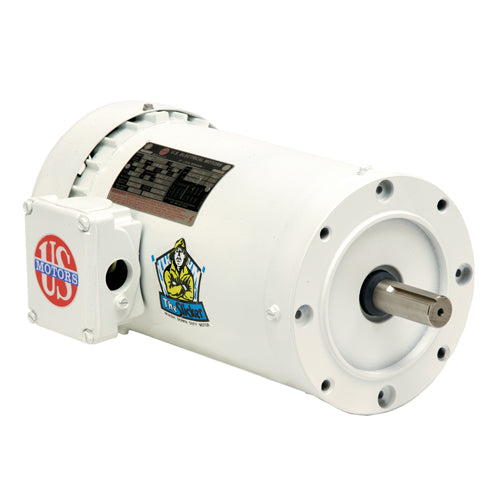

Product Description
- Three Phase
- Special Application Washdown
- Totally Enclosed Premium Efficient
- C Face Footless
- BISSC®€ Certified and USDA®€ Approved
Specifications
| Model_Number | P063GCY1494015B |
|---|---|
| PRODUCT NAME | 3 HP - TEFC - 3450 |
| PHASETYPE | 3_POLYPHASE |
| MOTOR ENCLOSURE | TEFC |
| HORSEPOWER | 3 |
| KILOWATTS | 2.2 |
| POLES | 2 |
| NUMBER SPEEDS | 1 |
| RPM | 3450 |
| HERTZ | 60 |
| VOLTS PRIMARY | 208-230/460 V |
| VOLTS | 208 |
| VOLTS 2 | 230 |
| VOLTS 3 | 460 |
| FRME | 56 |
| SHAFT CODE | C |
| STATOR DIAMETER | 6.3 |
| STACK | 3.25 |
| MOUNTING | C-FACE |
| MOTOR TYPE | WEREF |
| OPPOSITE END BEARING | 6203 |
| SHAFT END BEARING | 6203 |
| AMBIENT | 40 |
| ROTATION | REVERSIBLE |
| SERVICE FACTOR | 1.15 |
| SHIPPING WEIGHT | 32 |
| THERMAL PROTECTION | NONE |
| BREAKDOWN TORQUE | 258.2 |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE | 137.3 |
| LOCKED ROTOR TORQUE UOM | OZFT |
| INSULATION CLASS | F |
| KVA CODE LETTER | K |
| LOCKED ROTOR AMPS | 49.37 |
| NEMA NOMINAL EFFICIENCY | 86.5 |
| FULL LOAD AMPS PRIMARY | 7.9-6.7/3.4 |
| SERVICE FACTOR AMPS PRIMARY | 7.7/3.9 |
