availability:
In stock
enclosure:
TEFC
frame:
56
horsepower:
0.33
mpn:
XS13CA1JCR
phase:
1
rpm:
2800-3600
voltage:
100-120, 200-240

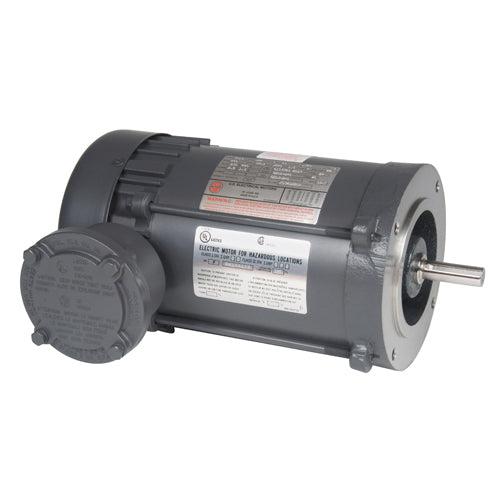

Product Description
- General Purpose
- Hazardous Location
- Hazardous Location
- Class I (Group C & D) Class II (Group E F & G)
- C Face Footless
Specifications
| Model_Number | CH63AAD1003015B |
|---|---|
| PRODUCT NAME | .33 HP - TEFC - 3450 |
| PHASETYPE | 1_CAPACITOR START |
| MOTOR ENCLOSURE | TEFC |
| HORSEPOWER | .33 |
| KILOWATTS | 0.3 |
| POLES | 2 |
| NUMBER SPEEDS | 1 |
| RPM | 3450 |
| HERTZ | 60 |
| VOLTS PRIMARY | 115/208-230 V |
| VOLTS | 115 |
| VOLTS 2 | 208 |
| VOLTS 3 | 230 |
| FRME | 56 |
| SHAFT CODE | C |
| STATOR DIAMETER | 6.3 |
| STACK | 1.375 |
| MOUNTING | C-FACE |
| MOTOR TYPE | FHP |
| OPPOSITE END BEARING | 6205 |
| SHAFT END BEARING | 6203 |
| AMBIENT | 40 |
| ROTATION | REVERSIBLE |
| SERVICE FACTOR | 1 |
| STARTCAPMFD | 374 |
| SHIPPING WEIGHT | 29 |
| THERMAL PROTECTION | AUTOMATIC RESET |
| BREAKDOWN TORQUE | 43.8 |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE | 54.62 |
| LOCKED ROTOR TORQUE UOM | OZFT |
| INSULATION CLASS | B |
| KVA CODE LETTER | R |
| LOCKED ROTOR AMPS | 46.41 |
| FULL LOAD AMPS PRIMARY | 8.0 / 3.6 - 4.0 |
| SERVICE FACTOR AMPS PRIMARY | 8.0 / 3.6 - 4.0 |
