category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Grainger_AHAxxxxMANUALxx3ccfa9.pdf
manufacturer:
Vestil
mpn:
AHA-2-10-8
subcategory:
Lifting / Pulling & Positioning
type:
Lifting Equipment
Data Sheet Product Description

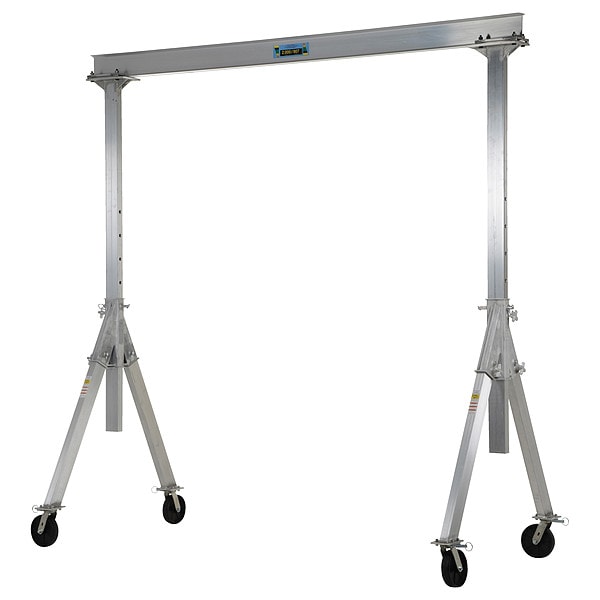

Vestil - AHA-2-10-8
Adjustable Gantry Crane, Body Material Aluminum, Maximum Lifting Capacity 2,000 lb, I-Beam Flange Width 3.3 in, I-Beam Height 6 in, Height Adjustability Adjustable Height, Minimum Overall Height 6 ft, Maximum Overall Height 8.7 ft, Minimum Height Under Beam 5.5 ft, Maximum Height Under Beam 8.2 ft, Minimum Overall Span 10 ft, Maximum Overall Span Not Applicable, Minimum Clear Span Not Applicable, Maximum Clear Span 8 ft, Mobility Under Load Stationary, Rotating Legs No
Additional Information
Min. I Beam Height68 in
Max. I Beam Height98 in
I Beam Flange Width3.31 in
I Beam Height6 in
Height AdjustmentAdjustable Height
Wheel Width2 in
Wheel Diameter8 in
Overall Width4.5 ft
Mfr. Warranty Length1 yr
Height Adjustment Increments6 in
Maximum Height Under Beam8.2 ft
Minimum Height Under Beam5.5 ft
Maximum Overall Height8.7 ft
Height AdjustabilityAdjustable Height
I-Beam Flange Width3.3 in
Minimum Overall Height6 ft
Overall Depth120 in
I-Beam Height6 in
Item Adjustable Hgt Aluminum Gantry Crane
Load Capacity 2,000 lb
Caster Type (4) Swivel Locking
Adjustable Increments 6 in
Caster Material Glass/Nylon
Standards ANSI, CMAA
Color Silver
Mobility Casters
Rotating Legs No
Mobility Under Load Stationary
Span Adjustability Fixed Span
Body Material Aluminum
Wheel Material Glass-Filled Nylon
Maximum Clear Span 8 ft
Leg Connection Type Bolt On
Minimum Overall Span 10 ft
Included Components Straps
Maximum Lifting Capacity 2,000 lb
