category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Grainger_AHAxxxxMANUALxx3ccfa9.pdf
manufacturer:
Vestil
mpn:
AHA-2-8-8
subcategory:
Lifting / Pulling & Positioning
type:
Lifting Equipment
Data Sheet Product Description

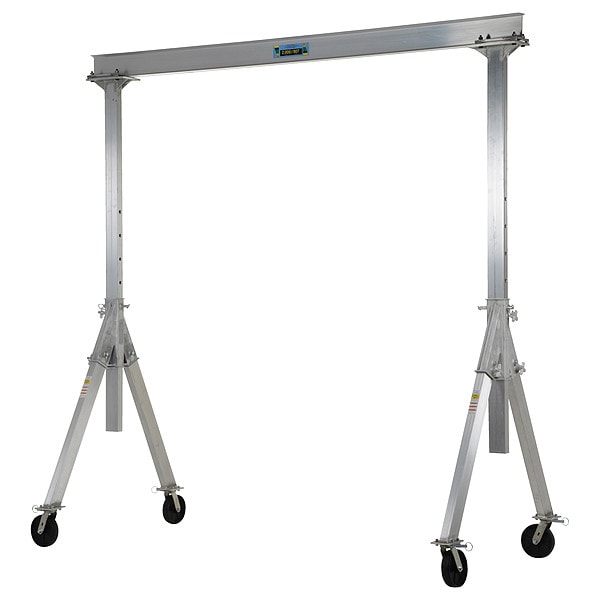

Vestil - AHA-2-8-8
Adjustable Gantry Crane, Body Material Aluminum, Maximum Lifting Capacity 2,000 lb, I-Beam Flange Width 3.3 in, I-Beam Height 6 in, Height Adjustability Adjustable Height, Minimum Overall Height 6 ft, Maximum Overall Height 8.7 ft, Minimum Height Under Beam 5.5 ft, Maximum Height Under Beam 8.2 ft, Minimum Overall Span Not Applicable, Maximum Overall Span 8 ft, Minimum Clear Span Not Applicable, Maximum Clear Span 6 ft, Mobility Under Load Stationary, Rotating Legs No
Additional Information
Min. I Beam Height68 in
Max. I Beam Height98 in
I Beam Flange Width3.31 in
I Beam Height6 in
Height AdjustmentAdjustable Height
Wheel Diameter8 in
Wheel Width2 in
Overall Width4.5 ft
Height Adjustment Increments6 in
Mfr. Warranty Length1 yr
Maximum Height Under Beam8.2 ft
Minimum Overall Height6 ft
Maximum Overall Height8.7 ft
Height AdjustabilityAdjustable Height
Minimum Height Under Beam5.5 ft
Overall Depth96 in
I-Beam Flange Width3.3 in
I-Beam Height6 in
Item Adjustable Hgt Aluminum Gantry Crane
Load Capacity 2,000 lb
Adjustable Increments 6 in
Caster Type (4) Swivel Locking
Caster Material Glass/Nylon
Color Silver
Standards ANSI, CMAA
Maximum Lifting Capacity 2,000 lb
Mobility Under Load Stationary
Maximum Clear Span 6 ft
Maximum Overall Span 8 ft
Body Material Aluminum
Leg Connection Type Bolt On
Wheel Material Glass-Filled Nylon
Mobility Casters
Included Components Straps
Span Adjustability Fixed Span
Rotating Legs No
