Data Sheet Product Description

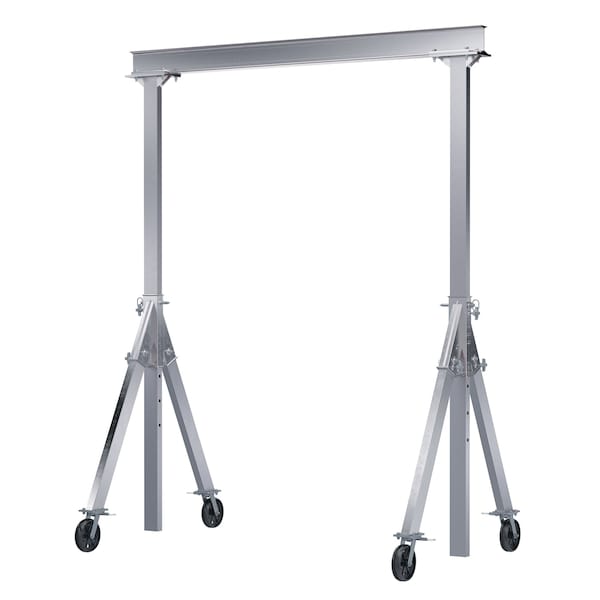

Vestil - AHA-4-8-8-VG
The adjustable height Aluminum Gantry crane combines lightweight and rigid, sturdy construction into one unit. The all aluminum construction of this gantry crane makes it corrosion resistant and perfect for outdoor use. The lightweight I-beam allows simple height adjustments. All pinned connections make it possible for single person set up and take down in just minutes. Included are two straps, allowing one person to transport the gantry crane in one neat package. Unit comes standard four (4) V-groove casters, allowing for quick movement and positioning adjustments.
Additional Information
Max. I Beam Height106-1/8 in.
Gantry Crane Depth96 in.
I Beam Flange Width4 in.
Wheel Diameter8 in.
Height Adjustment6 in.
Wheel Width2 in.
I Beam Height8 in.
Height106-1/8 in.
ItemAlum Gantry Crane 8'x8' Cast Iron 4K
Load Capacity4,000 lb
MaterialAluminum
ColorSilver
Caster MaterialCast Iron
Includes(4) V-Groove Cast Iron Casters
StandardsCMAA and ANSI specifications
