category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Vestil Manufacturing Corp_AHSxx4xx15xx9xxPNUxxd256b6.pdf
manufacturer:
Vestil
mpn:
AHS-4-15-9-PNU
subcategory:
Lifting / Pulling & Positioning
type:
Lifting Equipment
Data Sheet Product Description
Vestil - AHS-4-15-9-PNU

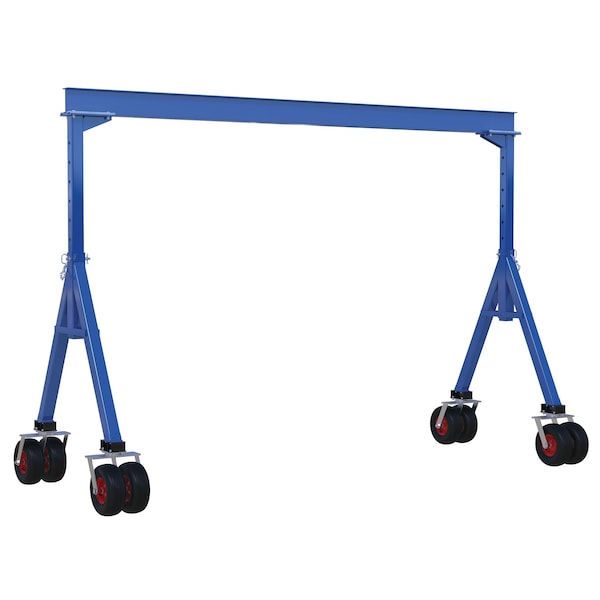

The adjustable height steel gantry crane is designed for transporting and positioning materials along the beams length. The cranes beam height can be adjusted to better conform to the working conditions making it both ergonomically friendly and cost effective. Do not move units while loaded. A painted blue finish protects the unit from rust. Designed for semi-permanent or permanent applications.
- • Incremental height adjustment
- • Pinned connections for quick set up and take down
- • Easily adjustable height with fork truck or other overhead lifting device
- • Smooth rolling with four swivel pneumatic casters
Additional Information
Gantry Crane Depth190-3/4 in
I Beam Flange Width4 in
I Beam Height97-1/2 in
Wheel Diameter16 in
Load Capacity4000 lb
MaterialSteel
Adjustable Increments6 in
ColorBlue
IncludesGantry Crane and (4) Casters
FinishPainted
Caster MaterialRubber
Caster TypeSwivel
