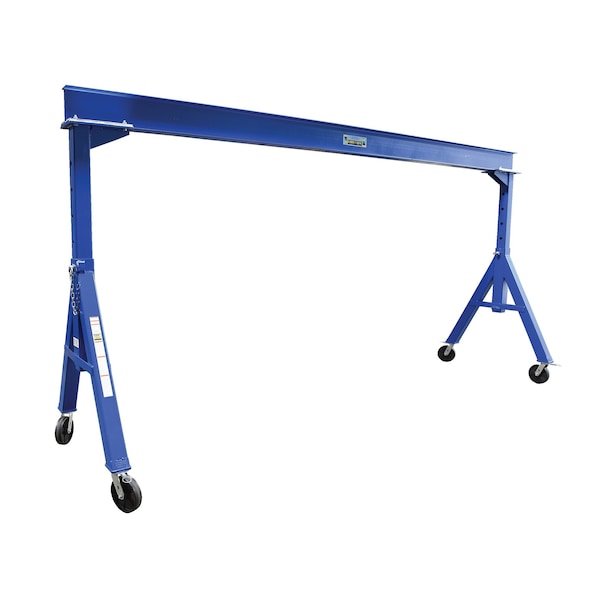

Vestil AHS-4-20-12 Steel Gantry Crane, 20' x 12'

Vestil AHS-4-20-12 Steel Gantry Crane, 20' x 12'

Dropship

Get it by Tue, Feb 17 - Sun, Feb 22

SKU SKU:kpi214-AHS-4-20-12

Regular price $4,578.51 USD
Regular price Sale price $4,578.51 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Material Handling
country_of_origin: USA
data_sheet: https://www.zoro.com/static/cms/enhanced_pdf/Vestil Manufacturing Corp_AHSxx4xx20xx12xx17b96d.pdf
manufacturer: Vestil
mpn: AHS-4-20-12
subcategory: Lifting / Pulling & Positioning
type: Lifting Equipment

Product Description

Vestil - AHS-4-20-12

The industrial steel Gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service. Unit comes standard four (4) position locking swivel casters with roller bearings. Locks the rigging in 1 of 4 positions; you can set the wheels and push the gantry crane forward, back, left or right. There is an optional total locking casters that lock the rigging in any position and locks the wheel from rotating. More economical and flexible than permanent cranes and features a quick setup design. Painted blue finish with warning and operating stickers and complete owner's manual. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up.

Additional Information

Max. I Beam Height156 in.
Gantry Crane Depth239-3/4 in.
I Beam Flange Width4 in.
I Beam Height12-3/16 in.
Width76.125
Height156 in.
Wheel Width2 in.
Wheel Diameter8 in.
Height Adjustment6 in.
ItemSteel Gantry Crane 20'x12' Phenolic 4K
Load Capacity4,000 lb
MaterialSteel
FinishPainted
StandardsCMAA and ANSI specifications
Caster MaterialPhenolic
ColorBlue
Includes(4) Phenolic Swivel Position locking Casters
