category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Vestil Manufacturing Corp_AHSNxx2xx15xx14xxb51b03.pdf
manufacturer:
Vestil
mpn:
AHSN-2-15-12-VG
subcategory:
Lifting / Pulling & Positioning
type:
Lifting Equipment
Data Sheet Product Description

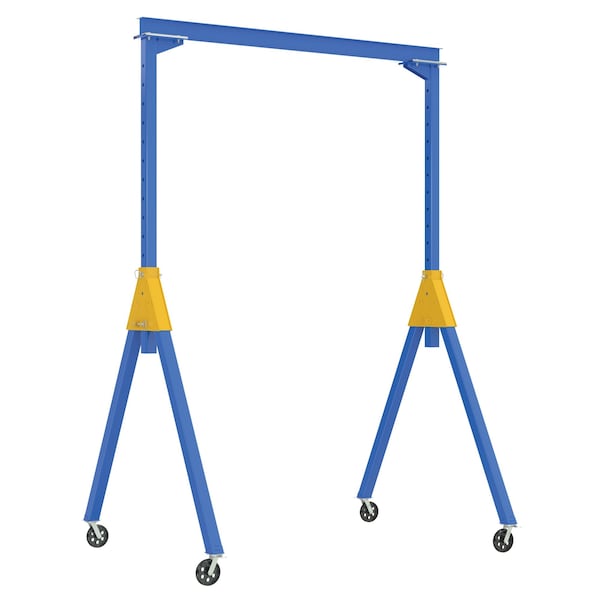

Vestil - AHSN-2-15-12-VG
The adjustable height steel gantry crane is designed for transporting and positioning materials along the beams length. The cranes beam height can be adjusted to better conform to the working conditions making it both ergonomically friendly and cost effective. Unit comes standard four (4) V-groove casters, allowing for quick movement and positioning adjustments. Height is adjustable in 6" increments. Do not move units while loaded. Hoist and trolley can be ordered separately. A painted blue finish protects the unit from . Designed for semi-permanent or permanent applications.
Additional Information
Max. I Beam Height149-7/8 in.
Gantry Crane Depth179-3/4 in.
I Beam Flange Width4 in.
Height Adjustment6 in.
Wheel Width2 in.
I Beam Height6 in.
Wheel Diameter8 in.
Height149-7/8 in.
ItemKD Gantry Crane 15'x12' Cast Iron 2K
Load Capacity2,000 lb
MaterialSteel
StandardsCMAA and ANSI specifications
FinishPainted
ColorBlue
Caster MaterialCast Iron
Includes(4) V-Groove Cast Iron Casters
