Data Sheet Product Description
Vestil - CBFC-500-DC

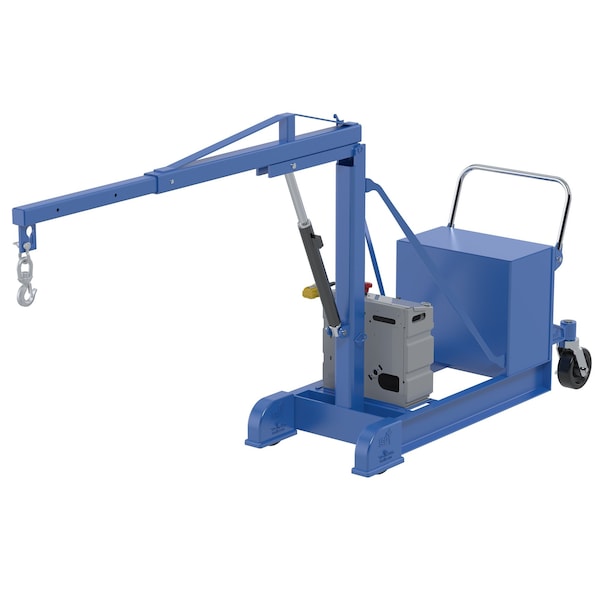

This crane has an adjustable boom to allow for maximum adjustment and versatility to lift a variety of loads. Boom is raised with a push of a button on DC powered units. Boom also telescopes out for greater reach. The counterbalance design eliminates the need for front legs, making the unit easier to maneuver and ideal for reaching tight, hard to reach areas. Units roll on two 2 rigid 8'' x 2'' glass-filled nylon and two 2 swivel 8'' x 3'' phenolic caster with side brake. Counterbalance included. Welded steel construction.
- • DC powered for use in multiple areas
- • Maneuverable for precise positioning
- • Casters for smooth transference
- • Counterbalanced for all around stability
Additional Information
Height (In.)135-1/8 in
Length (In.)102 in
Width (In.)29 in
Base Size (In.)70 in L x 29 in W
Boom Length (In.)53-1/2 in to 77-1/2 in
Rigid Caster Width2 in
Rigid Caster Diameter8 in
Swivel Caster Diameter8 in
Swivel Caster Width3 in
Capacity (Lb.)500 lb
DesignCounter Balance
FunctionFloor Crane
Voltage12V DC
IncludesCasters
FeaturesDC powered for use in multiple areas. The counterbalance design eliminates the need for front legs, making the unit easier to maneuver and ideal for reaching tight, hard to reach areas. Maximum adjustment and versatility to lift a variety of loads
MaterialSteel
FinishSmooth
Swivel Caster MaterialPhenolic
Swivel Caster Quantity2
Rigid Caster MaterialGlass-Filled Nylon
Raised Arm Fully Extended90 in
Rigid Caster Quantity2
ColorBlue
Lowered Arm Fully Extended5 in
