category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Vestil Manufacturing Corp_EHExxxxMANUALxx684ca5.pdf
manufacturer:
Vestil
mpn:
EHE-3
subcategory:
Lifting / Pulling & Positioning
type:
Lifting Tables
Data Sheet Product Description

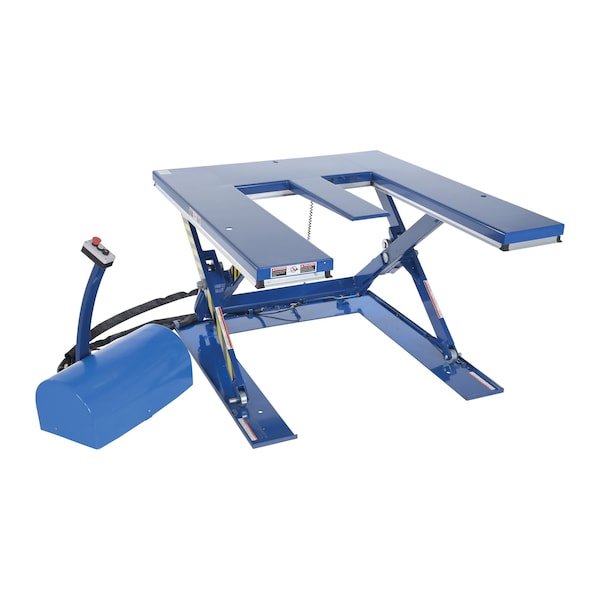

Vestil - EHE-3
The Low Profile Electric Lift Tables are ideal for the manufacturing and distribution facilities. The unique, steel constructed, “E” design provides a center support beam to prevent the lifted product from deflecting downward in the center. Numerous protective features include electric toe guards, velocity cylinders, and emergency stop buttons provide personnel with the utmost safety. An external power pack is equipped with a pressure relief valve which prevents overloading while controlling lowering speed. To raise and lower the unit, simply utilize the ‘up and down’ push button design on the 24V control box for precise ergonomic positioning of product.
Additional Information
Platform Length63 in.
Overall Length63 in.
Overall Width53-1/2 in.
Max. Work Height33-1/2 in.
Width53.5
Platform Depth63 in.
Overall Height4-1/4 in.
Platform Width53-1/2 in.
Height4.25
Load Capacity3,000 lb.
ItemE Type Electric Lift Table 3k
IncludesFeatures include hand control, electric toe guards, velocity cylinders, and emergency stop buttons
PhaseSingle Phase
Frame MaterialSteel
HP2 hp
Power SourceElectric - Corded
MaterialSteel
Voltage115V
ColorBlue
