category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/a4a1ebd9-83c0-4f78-ace1-168f2bf5ab6c.pdf
manufacturer:
Vestil
mpn:
FHS-2-10-TLC
subcategory:
Lifting / Pulling & Positioning
type:
Lifting Equipment
Data Sheet Product Description

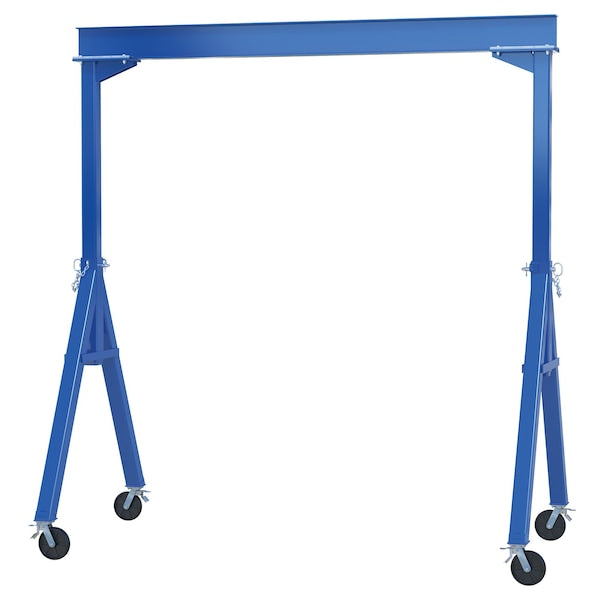

Vestil - FHS-2-10-TLC
The fixed height steel gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service, while the painted blue finish will keep the models protected from surface ware. Unit comes standard with total locking casters. The total locking casters lock the rigging in any position and locks the wheel from rotating. The unit is an economical and efficient way to lift and raise products, diminishing the need of additional personnel. The fixed height design allows for constant use in a particular setting without the need to maneuver the overall height of the unit.
Additional Information
Max. I Beam Height120 in.
Gantry Crane Depth109-1/4 in.
I Beam Flange Width4 in.
I Beam Height6 in.
Wheel Width2 in.
Wheel Diameter8 in.
Height126 in.
ItemFixed Stl Gantry Crane 10' Total Lock 2K
Load Capacity2,000 lb
MaterialSteel
ColorBlue
FinishPainted
Includes(4) Total locking Glass Filled Nylon Casters
StandardsOSHA 29 CFR 1910 179, ASME B30 17, ANSI Z535 4 specifications
Caster MaterialGlass Filled Nylon
