category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/a4a1ebd9-83c0-4f78-ace1-168f2bf5ab6c.pdf
manufacturer:
Vestil
mpn:
FHS-8-15-TLC
subcategory:
Lifting / Pulling & Positioning
type:
Lifting Equipment
Data Sheet Product Description

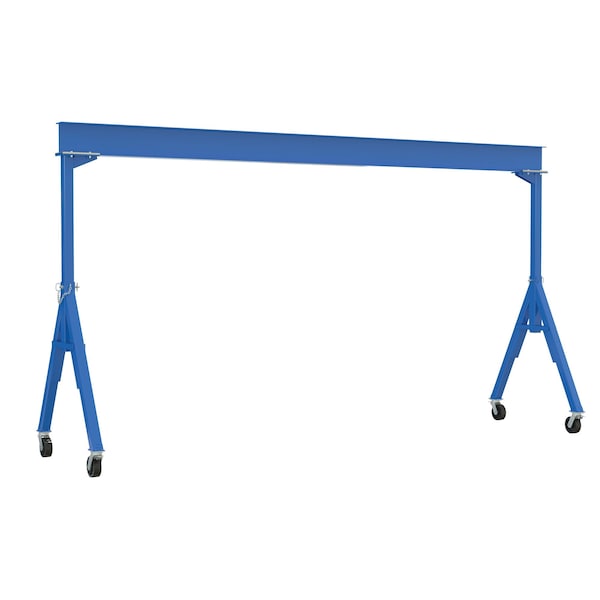

Vestil - FHS-8-15-TLC
The fixed height steel gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service, while the painted blue finish will keep the models protected from surface ware. Unit comes standard with total locking casters. The total locking casters lock the rigging in any position and locks the wheel from rotating. The unit is an economical and efficient way to lift and raise products, diminishing the need of additional personnel. The fixed height design allows for constant use in a particular setting without the need to maneuver the overall height of the unit.
Additional Information
Max. I Beam Height121 in.
Gantry Crane Depth179-3/4 in.
I Beam Flange Width4 in.
Wheel Diameter8 in.
Wheel Width3 in.
I Beam Height10-1/8 in.
Height131-5/16 in.
ItemFixed Stl Gantry Crane 15' Total Lock 8K
Load Capacity8,000 lb.
MaterialSteel
ColorBlue
Includes(4) Total locking Glass Filled Nylon Casters
FinishPainted
Caster MaterialPhenolic
StandardsOSHA 29 CFR 1910 179, ASME B30 17, ANSI Z535 4 specifications
