Data Sheet Product Description

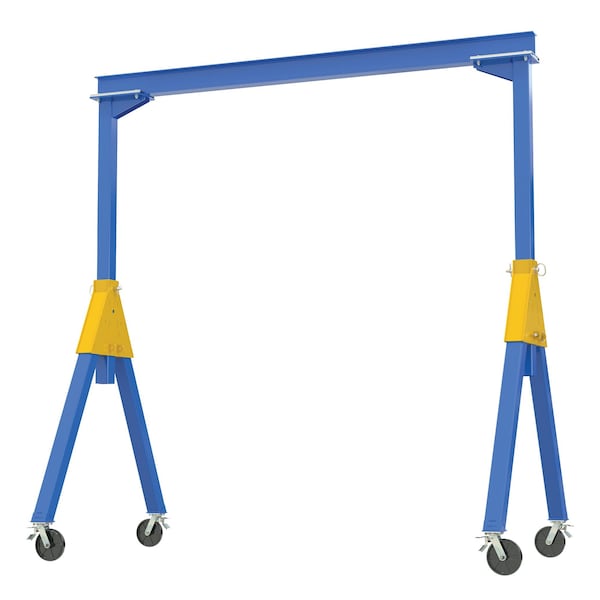

Vestil - FHSN-4-10-TLC
The fixed height knockdown industrial steel Gantry cranes are uniquely designed to be disassembled when not in use for compact storage and easier transportation / shipping from one job site to another. Facilitate easy mobility from one area to another with total locking casters. The total locking casters lock the rigging in any position and locks the wheel from rotating. Features quick setup design. Do not move units while loaded. Painted blue finish. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up.
Additional Information
Max. I Beam Height120-3/8 in.
Gantry Crane Depth119-3/4 in.
I Beam Flange Width4 in.
Wheel Diameter8 in.
Wheel Width2 in.
I Beam Height8-1/8 in.
Height128-1/2 in.
ItemKD Gantry Crane 10' Total Lock 4K
Load Capacity4,000 lb
MaterialSteel
Includes(4) Total locking Glass Filled Nylon Casters
Caster MaterialGlass Filled Nylon
FinishPainted
ColorBlue
StandardsCMAA and ANSI specifications
