category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/81f4e164-fb30-4c3c-a7ba-077ea77f75e4.pdf
manufacturer:
Vestil
mpn:
FHSN-4-20-TLC
subcategory:
Lifting / Pulling & Positioning
type:
Lifting Equipment
Data Sheet Product Description

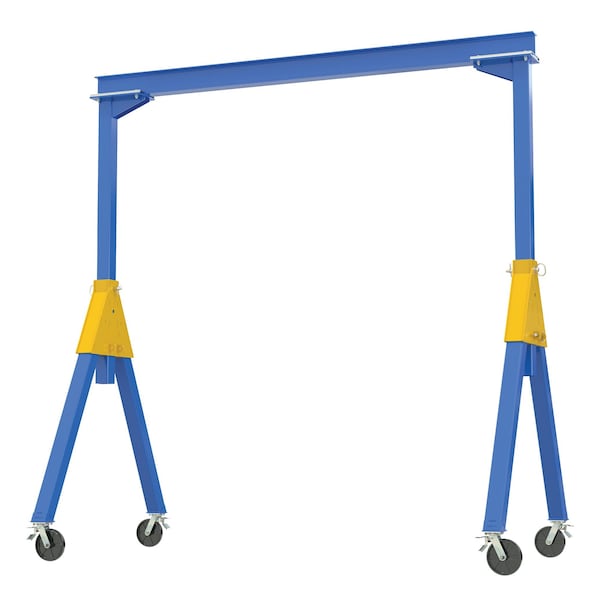

Vestil - FHSN-4-20-TLC
The fixed height knockdown industrial steel Gantry cranes are uniquely designed to be disassembled when not in use for compact storage and easier transportation / shipping from one job site to another. Facilitate easy mobility from one area to another with total locking casters. The total locking casters lock the rigging in any position and locks the wheel from rotating. Features quick setup design. Do not move units while loaded. Painted blue finish. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up.
Additional Information
Max. I Beam Height120-3/8 in.
Gantry Crane Depth239-3/4 in.
I Beam Flange Width4 in.
Wheel Diameter8 in.
Wheel Width2 in.
I Beam Height12-3/16 in.
Height132-1/2 in.
ItemKD Gantry Crane 20' Total Lock 4K
Load Capacity4,000 lb
MaterialSteel
ColorBlue
FinishPainted
Caster MaterialGlass Filled Nylon
StandardsCMAA and ANSI specifications
Includes(4) Total locking Glass Filled Nylon Casters
