category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/81f4e164-fb30-4c3c-a7ba-077ea77f75e4.pdf
manufacturer:
Vestil
mpn:
FHSN-6-10-TLC
subcategory:
Lifting / Pulling & Positioning
type:
Lifting Equipment
Data Sheet Product Description

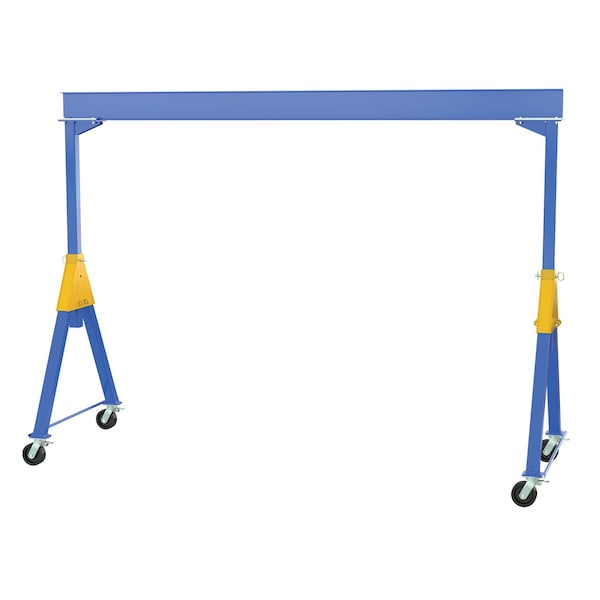

Vestil - FHSN-6-10-TLC
The fixed height knockdown industrial steel Gantry cranes are uniquely designed to be disassembled when not in use for compact storage and easier transportation / shipping from one job site to another. Facilitate easy mobility from one area to another with total locking casters. The total locking casters lock the rigging in any position and locks the wheel from rotating. Features quick setup design. Do not move units while loaded. Painted blue finish. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up.
Additional Information
Max. I Beam Height121 in.
Gantry Crane Depth119-3/4 in.
I Beam Flange Width4 in.
I Beam Height8-1/8 in.
Wheel Diameter8 in.
Wheel Width3 in.
Height129-11/16 in.
ItemKD Gantry Crane 10' Total Lock 6K
Load Capacity6,000 lb.
MaterialSteel
Caster MaterialPhenolic
StandardsCMAA and ANSI specifications
FinishPainted
ColorBlue
Includes(4) Total locking Glass Filled Nylon Casters
