category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/1ef14306-365e-46fe-a0d1-c91e9eb6a303.pdf
manufacturer:
Vestil
mpn:
H-33-MD
subcategory:
Carts / Trucks / & Dollies
type:
Tilt & Cube Trucks
Data Sheet Product Description

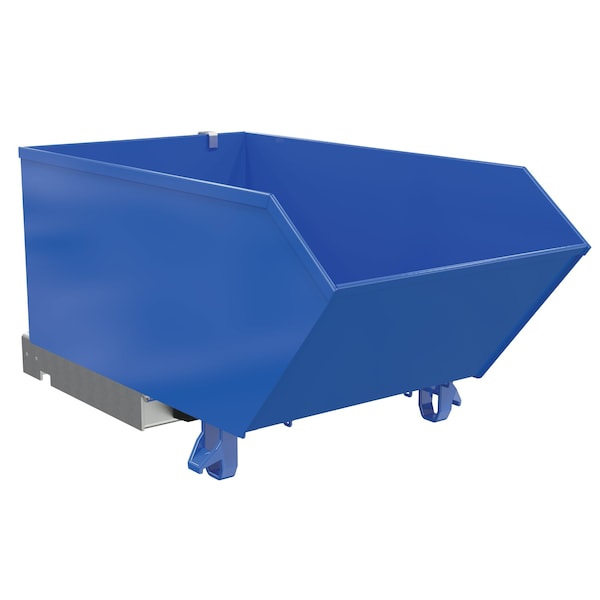

Vestil - H-33-MD
The Medium Duty Low Profile 90 degree Self-Dumping Steel Hopper feature a full ninety (90) degree dump angle with a cushioned rubber bumper stop. The low profile design is essential for convenient loading. Dumping with a fork truck is quick and simple. A cable is pulled from the seat of the fork truck to dump the hopper. The unit returns to an upright and locked position when lowered to the ground. Fork pockets are 22” long and are capped on the end to allow for 90 degrees dump. The included safety restraint/chain must be securely attached to the lift truck carriage without slack. Models with same overall width may be stacked. Never stack hoppers more than 3 high.
Additional Information
Platform Length48.3125"
Width (In.)27
Overall Length48.3125
Overall Height22.4375
Overall Width27
Size48.3125 x 27 x 22.4375
Height22.4375
Depth48.3125
MaterialSteel
ColorBlue
Load Capacity4000 lb
AssembledYes
ApplicationThe low profile design is essential for convenient loading. Dumping with a fork truck is quick and simple.
IncludesSafety Restraint
FeaturesLow-profile design makes loading easier. Included manual pull-cable dumps hopper from seat of fork truck. Full 90 degrees dump angle returns to upright position when lowered to ground. Features heavy-duty latch mechanism for worker safety
