category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/1ef14306-365e-46fe-a0d1-c91e9eb6a303.pdf
manufacturer:
Vestil
mpn:
H-75-HD
subcategory:
Carts / Trucks / & Dollies
type:
Tilt & Cube Trucks
Data Sheet Product Description

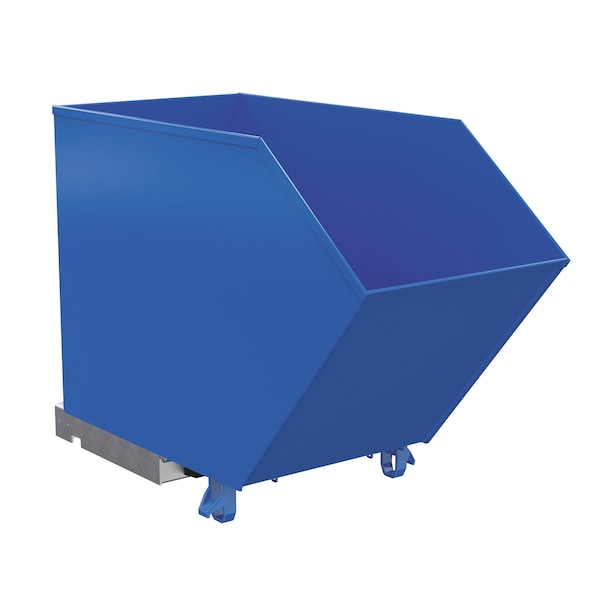

Vestil - H-75-HD
The Heavy Duty Low Profile 90 degree Self-Dumping Steel Hopper feature a full ninety (90) degree dump angle with a cushioned rubber bumper stop. The low profile design is essential for convenient loading. Dumping with a fork truck is quick and simple. A cable is pulled from the seat of the fork truck to dump the hopper. The unit returns to an upright and locked position when lowered to the ground. Fork pockets are 22” long and are capped on the end to allow for 90 degrees dump. The included safety restraint/chain must be securely attached to the lift truck carriage without slack. Models with same overall width may be stacked. Never stack hoppers more than 3 high.
Additional Information
Platform Length56.5625"
Overall Length56.5625
Overall Height38.625
Width (In.)27
Overall Width27
Size56.5625 x 27 x 38.625
Depth56.5625
Height38.625
MaterialSteel
ColorBlue
Load Capacity6000 lb
AssembledYes
IncludesSafety Restraint
ApplicationThe low profile design is essential for convenient loading. Dumping with a fork truck is quick and simple.
FeaturesLow-profile design makes loading easier. Included manual pull-cable dumps hopper from seat of fork truck. Full 90 degrees dump angle returns to upright position when lowered to ground. Features heavy-duty latch mechanism for worker safety
