category:
Storage & Workspace
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Grainger_HDDxxxxMANUALxx72614d.pdf
manufacturer:
Vestil
mpn:
HDD-48-10-P
subcategory:
Drums & Liquid Storage
type:
Drums & Accessories
Data Sheet Product Description

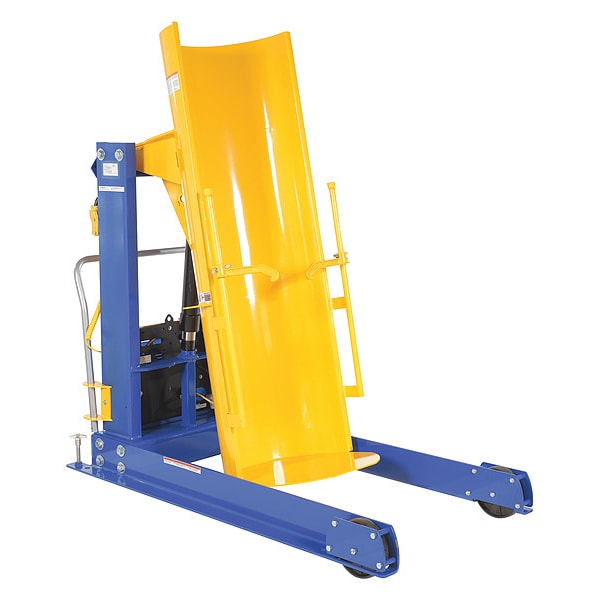

Vestil - HDD-48-10-P
Drum Dumper, Assembly Fully Assembled, Drum Securing Mechanism Clamp, Dump Angle 45 Degrees , Dump Height 48 in, Electrical Connection Power Cord, For Container Type Drums, For Drum Capacity 30 gal, 55 gal, For Drum Material Fiber, Plastic, Metal, Housing Color Blue, Yellow, Includes 56 Frame, 60 Hz Upper Travel Limit Switch, Includes Battery Batteries Not Included, Operating Voltage 115V AC, Overall Depth 71.5 in, Overall Height 72.5 in, Overall Width 36 in, Portability Casters
Additional Information
Length (In.)67 1/2 in
Rotated Height (In.)116-3/4
Dispensing Height (In.)48
Level Height (In.)72 1/4 in
Width (In.)36 in
Overall Width36 in
Overall Height72.5 in
Dump Height48 in
Overall Depth71.5 in
Power Cord Length8 ft
For Maximum Drum Diameter24 in
Rotation Height116.75 in
Manufacturer Warranty Length1 yr Limited
Item Drum Dumper
For Use With 30 and 55 Gallon Steel, Plastic or Fiber Drums
Includes 56 Frame, 60 Hz Upper Travel Limit Switch
Voltage 110/208-230 V Wired 110V from Factory with 3 prong plug.
Capacity (Lb.) 1,000
Type Portable Electric Hydraulic
Color/Finish Blue Powder Coated
Construction Welded Steel
Total Raise Time 40 sec
Casters Two Rear Phenolic Swivel Casters 6 x 2 in
Dump Angle (Deg.) 135
Motor HP 1 1/2 hp
Wheels Two Front Wheels Phenolic 6 x 2 in
Rotation Angle 135 Degrees
Dump Angle 45 Degrees
Standards OSHA
Phase Single
Features Adjustable Height Clamps, Chute Includes Steel It Coating
For Drum Material Fiber, Plastic, Metal
Maximum Motor Horsepower 3/4 hp
Drum Securing Mechanism Clamp
Body Material Steel
For Container Type Drums
Portability Casters
Frequency 60 Hz
Wheel Type Caster
Electrical Connection Power Cord
Motor Type AC Motor
Raise Time 40 in/sec
Power Source Hydraulic
Vertical Lift 116.75 in
Operating Voltage 115V AC
Assembly Fully Assembled
Product Type Drum Dumper
Weight Capacity 1,000 lb
Caster Type (2) Rigid; (2) Swivel
Includes Battery Batteries Not Included
Chute Material Steel
Housing Color Blue, Yellow
Wheel Material Phenolic
Housing Finish Powder Coated
For Drum Capacity 30 gal, 55 gal
