category:
Storage & Workspace
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Grainger_HDDxxxxMANUALxx72614d.pdf
manufacturer:
Vestil
mpn:
HDD-48-7-P
subcategory:
Drums & Liquid Storage
type:
Drums & Accessories
Data Sheet Product Description

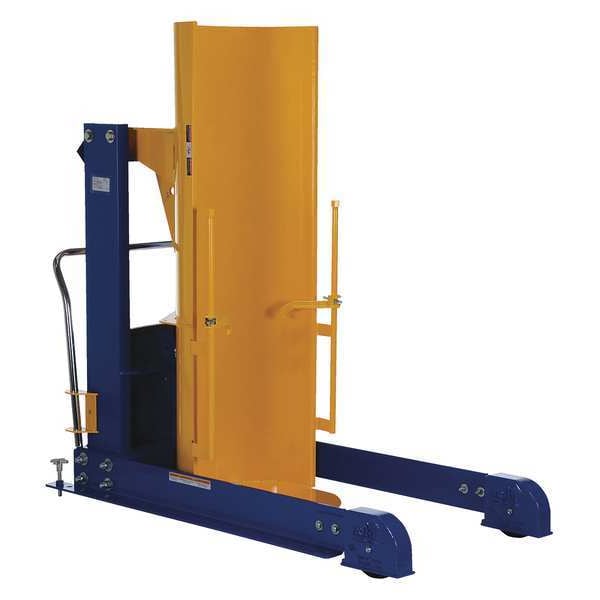

Vestil - HDD-48-7-P
Drum Dumper, Assembly Fully Assembled, Drum Securing Mechanism Clamp, Dump Angle 45 Degrees , Dump Height 48 in, Electrical Connection Power Cord, For Container Type Drums, For Drum Capacity 30 gal, 55 gal, For Drum Material Fiber, Plastic, Metal, Housing Color Blue, Yellow, Includes 56 Frame, 60 Hz Upper Travel Limit Switch, Includes Battery Batteries Not Included, Operating Voltage 115V AC, Overall Depth 71.5 in, Overall Height 72.5 in, Overall Width 36 in, Portability Casters
Additional Information
Overall Height72.5 in
Overall Width36 in
Power Cord Length8 ft
For Maximum Drum Diameter24 in
Overall Depth71.5 in
Manufacturer Warranty Length1 yr Limited
Rotation Height116.75 in
Dump Height48 in
Item Drum Dumper
Includes 56 Frame, 60 Hz Upper Travel Limit Switch
Drum Capacity 55 gal, 30
Load Capacity 750 lb
Number of Drums 1
Rotation Angle 135 Degrees
Dump Angle 45 Degrees
Phase Single
Standards OSHA
Features Adjustable Height Clamps, Emergency Safety Velocity Fuse, Hand Held Control, Upper Travel Limit Switch, Vertical Adjustment Drum
Product Type Drum Dumper
Assembly Fully Assembled
Chute Material Steel
Includes Battery Batteries Not Included
Frequency 60 Hz
For Container Type Drums
Motor Type AC Motor
For Drum Capacity 30 gal, 55 gal
Wheel Type Caster
Weight Capacity 750 lb
Raise Time 34 in/sec
For Drum Material Fiber, Plastic, Metal
Electrical Connection Power Cord
Body Material Steel
Portability Casters
Caster Type (2) Rigid; (2) Swivel
Housing Color Blue, Yellow
Power Source Hydraulic
Operating Voltage 115V AC
Housing Finish Powder Coated
Vertical Lift 116.75 in
Maximum Motor Horsepower 3/4 hp
Drum Securing Mechanism Clamp
