Data Sheet Product Description

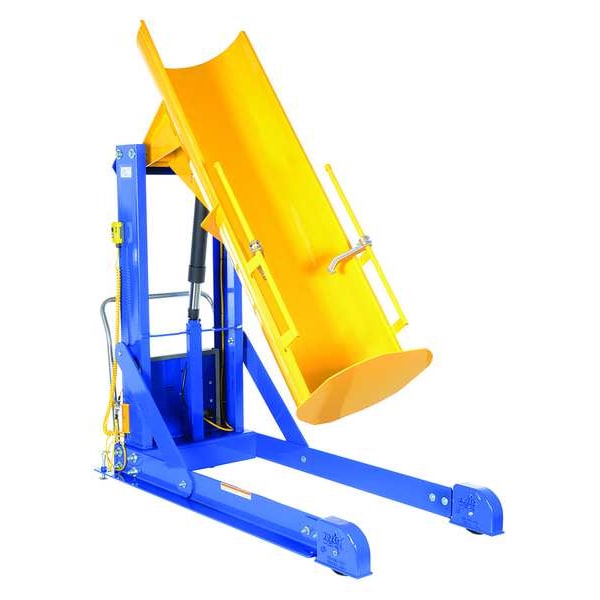

Vestil - HDD-60-7-P
Drum Dumper, Assembly Fully Assembled, Drum Securing Mechanism Clamp, Dump Angle 45 Degrees , Dump Height 60 in, Electrical Connection Power Cord, For Container Type Drums, For Drum Capacity 30 gal, 55 gal, For Drum Material Fiber, Plastic, Metal, Housing Color Blue, Yellow, Includes 56 Frame, 60 Hz Upper Travel Limit Switch, Includes Battery Batteries Not Included, Operating Voltage 115V AC, Overall Depth 80 in, Overall Height 84.5 in, Overall Width 36 in, Portability Casters
Additional Information
Level Height (In.)84 1/2 in
Width (In.)36 in
Length (In.)76 in
Rotated Height (In.)137-1/4
Dispensing Height (In.)60
Overall Width36 in
Overall Height84.5 in
For Maximum Drum Diameter24 in
Manufacturer Warranty Length1 yr Limited
Overall Depth80 in
Power Cord Length8 ft
Rotation Height137.25 in
Dump Height60 in
Item Drum Dumper
For Use With 30 and 55 Gallon Steel, Plastic or Fiber Drums
Includes 56 Frame, 60 Hz Upper Travel Limit Switch
Capacity (Lb.) 750
Wheels Two Front Wheels Phenolic 6 x 2 in
Total Raise Time 40 sec
Motor HP 1 1/2 hp
Construction Welded Steel
Voltage 110/208-230 V Wired 110V from Factory with 3 prong plug.
Type Portable Electric Hydraulic
Casters Two Rear Phenolic Swivel Casters 6 x 2 in
Color/Finish Blue Powder Coated
Dump Angle (Deg.) 135
Dump Angle 45 Degrees
Rotation Angle 135 Degrees
Phase Single
Standards OSHA
Features Adjustable Height Clamps, Chute Includes Steel It Coating
Product Type Drum Dumper
Portability Casters
For Drum Material Fiber, Plastic, Metal
Operating Voltage 115V AC
Body Material Steel
Vertical Lift 137.25 in
Maximum Motor Horsepower 3/4 hp
Power Source Hydraulic
Housing Color Blue, Yellow
Caster Type (2) Rigid; (2) Swivel
Motor Type AC Motor
Assembly Fully Assembled
Includes Battery Batteries Not Included
Wheel Type Caster
Raise Time 40 in/sec
For Drum Capacity 30 gal, 55 gal
Electrical Connection Power Cord
For Container Type Drums
Weight Capacity 750 lb
Drum Securing Mechanism Clamp
Housing Finish Powder Coated
Chute Material Steel
Frequency 60 Hz
Wheel Material Phenolic Plastic
