category:
Storage & Workspace
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Grainger_HDDxxxxMANUALxx72614d.pdf
manufacturer:
Vestil
mpn:
HDD-60-7-S
subcategory:
Drums & Liquid Storage
type:
Drums & Accessories
Data Sheet Product Description

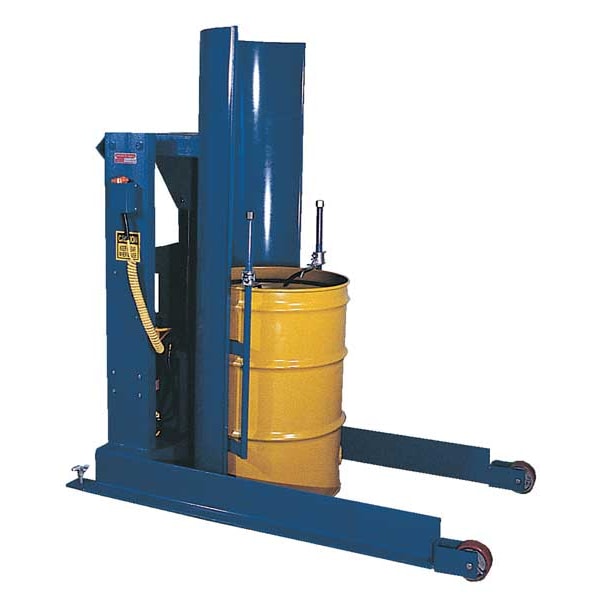

Vestil - HDD-60-7-S
Drum Dumper, Assembly Fully Assembled, Drum Securing Mechanism Clamp, Dump Angle 45 Degrees , Dump Height 60 in, Electrical Connection Power Cord, For Container Type Drums, For Drum Capacity 30 gal, 55 gal, For Drum Material Fiber, Plastic, Metal, Housing Color Blue, Yellow, Includes 56 Frame, 60 Hz Upper Travel Limit Switch, Includes Battery Batteries Not Included, Operating Voltage 115V AC, Overall Depth 80 in, Overall Height 84 in, Overall Width 36 in, Portability Stationary
Additional Information
Overall Height84 in
Overall Width36 in
Manufacturer Warranty Length1 yr Limited
Dump Height60 in
Power Cord Length8 ft
For Maximum Drum Diameter24 in
Overall Depth80 in
Rotation Height136.75 in
Item Drum Dumper
Includes 56 Frame, 60 Hz Upper Travel Limit Switch
Number of Drums 1
Drum Capacity 55 gal, 30
Load Capacity 750 lb
Phase Single
Standards OSHA
Dump Angle 45 Degrees
Rotation Angle 135 Degrees
Features Adjustable Height Clamps, Emergency Safety Velocity Fuse, Hand Held Control, Upper Travel Limit Switch, Vertical Adjustment Drum
Product Type Drum Dumper
Maximum Motor Horsepower 3/4 hp
Operating Voltage 115V AC
Body Material Steel
Portability Stationary
Housing Color Blue, Yellow
Raise Time 42 in/sec
Vertical Lift 136.75 in
Frequency 60 Hz
For Drum Material Fiber, Plastic, Metal
Caster Type (2) Rigid; (2) Swivel
Drum Securing Mechanism Clamp
Assembly Fully Assembled
Power Source Hydraulic
Electrical Connection Power Cord
For Drum Capacity 30 gal, 55 gal
Includes Battery Batteries Not Included
Chute Material Steel
Motor Type AC Motor
Housing Finish Powder Coated
For Container Type Drums
Weight Capacity 750 lb
