Data Sheet Product Description

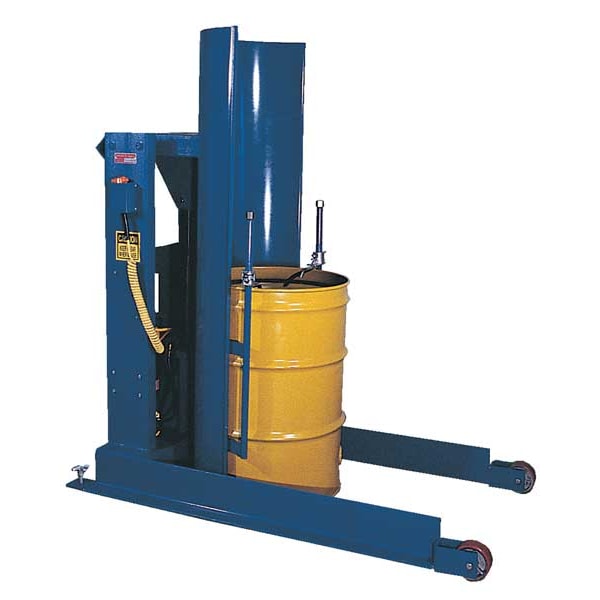

Vestil - HDD-72-10-S
Drum Dumper, Assembly Fully Assembled, Drum Securing Mechanism Clamp, Dump Angle 45 Degrees , Dump Height 72 in, Electrical Connection Power Cord, For Container Type Drums, For Drum Capacity 30 gal, 55 gal, For Drum Material Fiber, Plastic, Metal, Housing Color Blue, Yellow, Includes 56 Frame, 60 Hz Upper Travel Limit Switch, Includes Battery Batteries Not Included, Operating Voltage 115V AC, Overall Depth 92 in, Overall Height 95.25 in, Overall Width 36 in, Portability Stationary
Additional Information
Overall Height95.25 in
Overall Width36 in
Overall Depth92 in
For Maximum Drum Diameter24 in
Power Cord Length8 ft
Rotation Height157.25 in
Dump Height72 in
Manufacturer Warranty Length1 yr Limited
Item Drum Dumper
Includes 56 Frame, 60 Hz Upper Travel Limit Switch
Number of Drums 1
Load Capacity 1,000 lb
Drum Capacity 55 gal, 30
Dump Angle 45 Degrees
Phase Single
Standards OSHA
Rotation Angle 135 Degrees
Features Adjustable Height Clamps, Emergency Safety Velocity Fuse, Hand Held Control, Upper Travel Limit Switch, Vertical Adjustment Drum
Product Type Drum Dumper
Raise Time 42 in/sec
For Drum Material Fiber, Plastic, Metal
Caster Type (2) Rigid; (2) Swivel
Frequency 60 Hz
For Drum Capacity 30 gal, 55 gal
Maximum Motor Horsepower 3/4 hp
Drum Securing Mechanism Clamp
Includes Battery Batteries Not Included
Power Source Hydraulic
Assembly Fully Assembled
Portability Stationary
Operating Voltage 115V AC
Body Material Steel
Chute Material Steel
Electrical Connection Power Cord
Housing Color Blue, Yellow
Vertical Lift 157.25 in
For Container Type Drums
Housing Finish Powder Coated
Motor Type AC Motor
Weight Capacity 1,000 lb
