category:
Storage & Workspace
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Grainger_HDDxxxxMANUALxx72614d.pdf
manufacturer:
Vestil
mpn:
HDD-72-7-S
subcategory:
Drums & Liquid Storage
type:
Drums & Accessories
Data Sheet Product Description

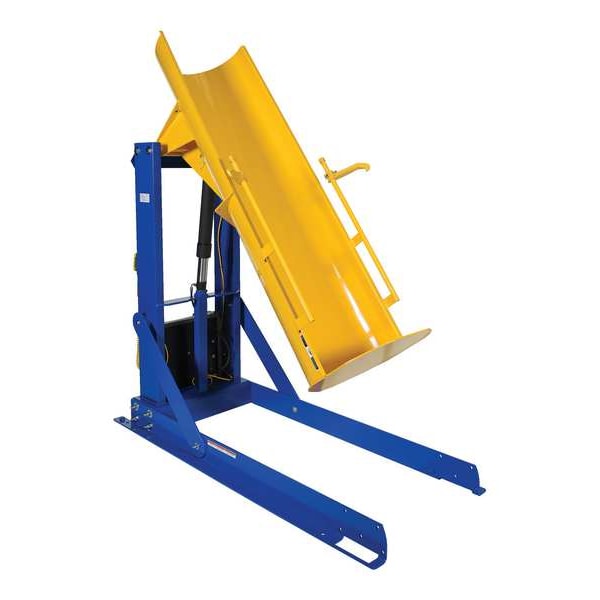

Vestil - HDD-72-7-S
Drum Dumper, Assembly Fully Assembled, Drum Securing Mechanism Clamp, Dump Angle 45 Degrees , Dump Height 72 in, Electrical Connection Power Cord, For Container Type Drums, For Drum Capacity 30 gal, 55 gal, For Drum Material Fiber, Plastic, Metal, Housing Color Blue, Yellow, Includes 56 Frame, 60 Hz Upper Travel Limit Switch, Includes Battery Batteries Not Included, Operating Voltage 115V AC, Overall Depth 92 in, Overall Height 95.25 in, Overall Width 36 in, Portability Stationary
Additional Information
Overall Height95.25 in
Overall Width36 in
Manufacturer Warranty Length1 yr Limited
Power Cord Length8 ft
Overall Depth92 in
For Maximum Drum Diameter24 in
Rotation Height157.25 in
Dump Height72 in
Item Drum Dumper
Includes 56 Frame, 60 Hz Upper Travel Limit Switch
Load Capacity 750 lb
Drum Capacity 55 gal, 30
Number of Drums 1
Phase Single
Dump Angle 45 Degrees
Rotation Angle 135 Degrees
Standards OSHA
Features Adjustable Height Clamps, Emergency Safety Velocity Fuse, Hand Held Control, Upper Travel Limit Switch, Vertical Adjustment Drum
Product Type Drum Dumper
Assembly Fully Assembled
Portability Stationary
Body Material Steel
Housing Color Blue, Yellow
Drum Securing Mechanism Clamp
Motor Type AC Motor
Maximum Motor Horsepower 3/4 hp
Chute Material Steel
Electrical Connection Power Cord
For Drum Material Fiber, Plastic, Metal
Includes Battery Batteries Not Included
Housing Finish Powder Coated
Frequency 60 Hz
For Drum Capacity 30 gal, 55 gal
For Container Type Drums
Raise Time 34 in/sec
Operating Voltage 115V AC
Caster Type (2) Rigid; (2) Swivel
Weight Capacity 750 lb
Vertical Lift 157.25 in
Power Source Hydraulic
