category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Grainger_HOPxxLPxxNxxxxMANUALxx8e0a75.pdf
manufacturer:
Vestil
mpn:
HOP-LP-N
subcategory:
Carts / Trucks / & Dollies
type:
Tilt & Cube Trucks
Data Sheet Product Description

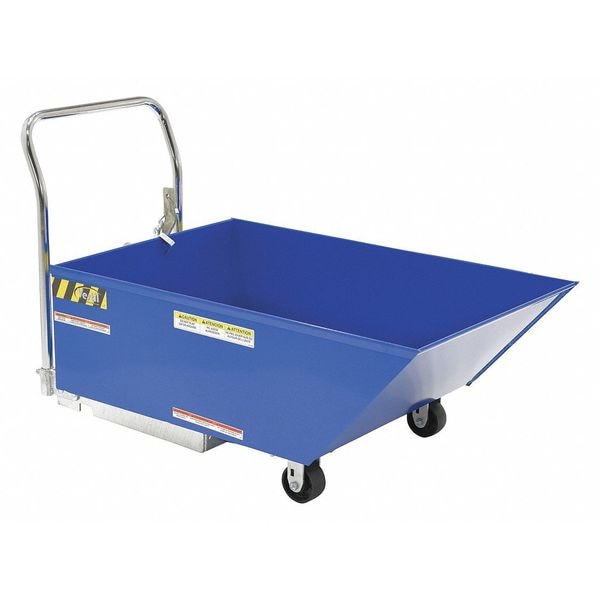

Vestil - HOP-LP-N
Low Profile Hopper, Included Casters Casters Included, Product Type Self-Dumping Hopper, Hopper Profile Low Profile, Load Capacity - Maximum 2,000 lb, Mobility Type Casters/Fork Pockets, Hopper Material Steel, Capacity - Cubic Foot 8 7/8 cu ft, Capacity - Cubic Yard 3/8 cu yd, Overall Height 33 5/8 in, Overall Length 54 in, Overall Width 29 7/8 in, Frame Gauge 10 in, Hopper Release Type Chain/Cable, Caster Dia. 4 in, Caster Configuration (1) Swivel with Brake, (2) Rigid
Additional Information
Platform Length54"
Fork Pocket Depth21 3/4 in
Fork Pocket Width7 in
Fork Pocket Height2 in
Caster Dia.4 in
Overall Width29-13/16"
Overall Length54"
Overall Height33-5/8"
Lip Height19-1/8 in
Material Steel
Color Blue
Load Capacity 2000 lb
Item Hopper
Assembled Yes
Frame Material Steel
Includes Rolls on three (3) wheels, two (2) rigid and one (1) swivel with brake. Includes a removable push handle.
Caster Material Glass Filled Nylon
Hopper Base Low Profile
Dump Angle 90 Degrees
Caster Configuration (1) Swivel with Lock, (2) Rigid
Hopper Material Steel
Finish Powder Coated
Hopper Release Cable Release
Application These unique products have been designed to function as parts hoppers that may be dumped with the assistance of a fork truck.
Capacity - Cubic Yard 3/8 cu yd
Hopper Profile Low Profile
Included Casters Casters Included
Mobility Type Casters/Fork Pockets
Load Capacity - Maximum 2,000 lb
Frame Gauge 10 in
Hopper Release Type Chain/Cable
Capacity - Cubic Foot 8 7/8 cu ft
Fork Pocket Spacing 4 5/8 in
