category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/HO 150.pdf
manufacturer:
Vestil
mpn:
PE-2572
subcategory:
Dock & Warehouse Equipment
type:
Ramps
Data Sheet Product Description

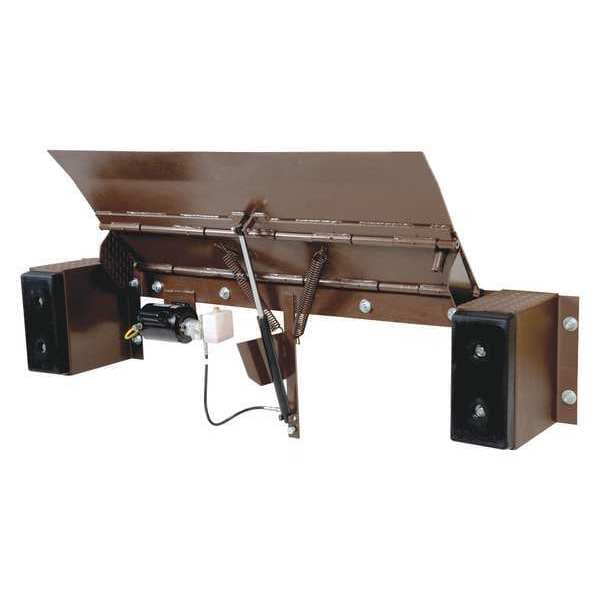

Vestil - PE-2572
Edge of Dock Leveler, Dock Leveler Lift Mechanism Electric Hydraulic, 25,000 lb Load Capacity, Service Height Range 5 in Above or Below Dock, Overall Width 99 in, Usable Width 72 in, Bumper Size 2 in x 8 in x 18 in, Motor HP 3/4 hp, Voltage 115 V, Includes Control Box, Cylinder, Hydraulic Lines, Motor, Oil, Pump, Open Depth 29 in, Closed Depth 17 1/2 in
Additional Information
Overall Width99 in
Usable Width72 in
Service Height Range5 in Above or Below Dock
Bumper Size2 in x 8 in x 18 in
Open Depth29 in
Closed Depth17 1/2 in
Bumper Width8 in
Opening Depth29 in
Bumper Height18 in
Service Height5 in
Bumper Depth2 in
Dock Leveler ItemEdge of Dock Leveler
Dock Leveler Lift MechanismElectric Hydraulic
Load Capacity25,000 lb
ItemEdge of Dock Leveler
Lift MechanismElectric Hydraulic
Voltage115 V
Motor HP3/4 hp
IncludesUnit comes complete with motor, pump, control box, cylinder, lines and oil
Load Capacity - Maximum25,000 lb
Horsepower3/4 hp
Nameplate Voltage115V
Bumper MaterialRubber
