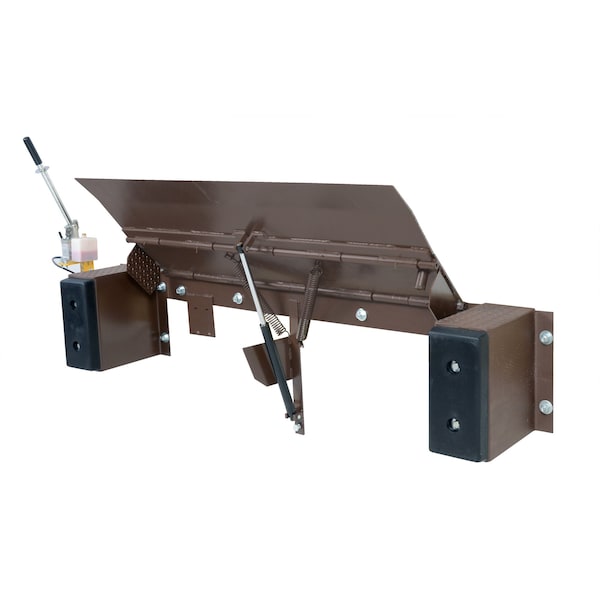

Vestil PP-2078 HAND PUMP EDGE-O-DOCK LEVELER 20K 78X29

Vestil PP-2078 HAND PUMP EDGE-O-DOCK LEVELER 20K 78X29

Dropship

Get it by Thu, Feb 19 - Tue, Feb 24

SKU kpi214-PP-2078

$2,098.79 USD
$2,098.79 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Material Handling
country_of_origin: USA
data_sheet: https://www.zoro.com/static/cms/enhanced_pdf/Vestil Manufacturing Corp_PPxx2078xx5c3df7.pdf
manufacturer: Vestil
mpn: PP-2078
subcategory: Dock & Warehouse Equipment
type: Ramps

Product Description

Vestil - PP-2078

The Edge-O-Dock leveler permanently attaches to face of dock. It is recommended for docks to be at least 48 inches high. When the trailer departs, the lip drops automatically behind the face of the bumpers. Concrete recess is not required. It comes complete with bumpers and installation instructions. Standard Ramping is 29 inches; models FM/PP/PE 3066 and 3072 are 29-13/16 inches, with a 36-5/8 inches long ramping length available. A steel dock edge, or approach ramp is required for proper installation. The Hydraulic Hand Pump system is used to lift the leveler and extend the lip. The operator rotates the relief valve allowing the deck to descend down and rest upon the trailer. Unit comes complete with hand pump, wall mount brackets, cylinder, One-hundred Eighty (180) inch hydraulic line and oil. Truck must pull out for leveler to return to stored position.

Additional Information

Overall Width105 in.
Usable Width78 in.
Bumper Size8" x 18"
Overall Height27-1/2 in.
Length17.5
Height27.5
Dock Leveler Item78"x29" Hnd Pmp E-O-D Level 20K
Dock Leveler Lift MechanismHydraulic Hand Pump
Load Capacity20,000 lb.
IncludesComes complete with bumpers and in.stallation in.structions
Weight578
FinishPainted
