category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/2d52553d-4cb8-42a6-808b-e4c10713fb32.pdf
manufacturer:
Vestil
mpn:
SBM-40-10
subcategory:
Lifting / Pulling & Positioning
type:
Lifting Equipment
Data Sheet Product Description

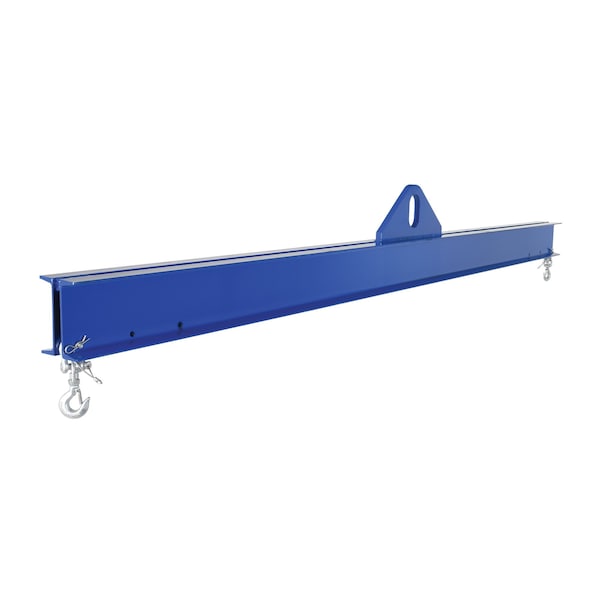

Vestil - SBM-40-10
Economy Spreader Beam
Additional Information
Overall Length120 in.
Overall Width5-3/16 in.
Bail Opening Height5 in.
Width5.1875
Bail Opening Width3 in.
Overall Height20-9/16 in.
Lifting Height Max.18-3/8"
ItemEconomy Spreader Beam
MaterialSteel
ColorBlue
Max. Spread117"
Min. Spread93"
StandardsASME B30.20-1993
Hook Opening5-3/16"
IncludesIncludes two swivel lifting hooks for added versatility
FinishPowder Coat
OperationOverhead Lifting Devices
For Use with TrolleyMaterial Handling
Load Capacity4,000 lb.
Product TypeEconomy Spreader Beam
FeaturesDesigned to lift and move uneven and awkward loads; Complies with ASME B30.20-1993 standards; Includes two swivel lifting hooks for added versatility; Welded steel construction for heavy duty performance
