category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Vestil Manufacturing Corp_SBMxxBFBxx100xx10xxc93916.pdf
manufacturer:
Vestil
mpn:
SBM-BFB-100-10
subcategory:
Lifting / Pulling & Positioning
type:
Lifting Equipment
Data Sheet Product Description

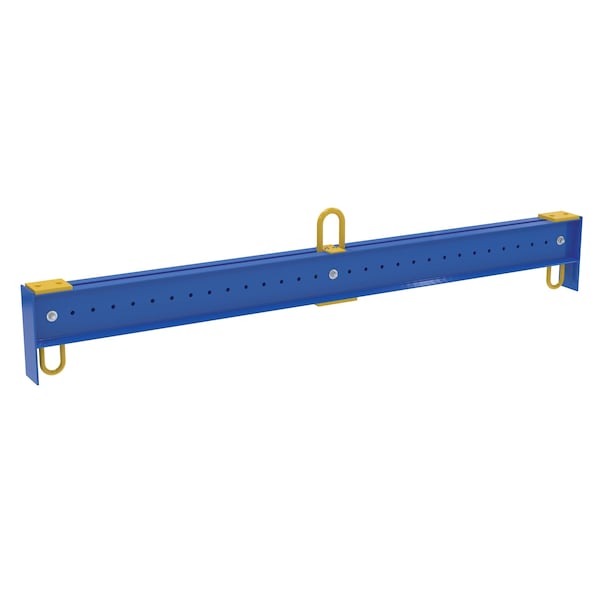

Vestil - SBM-BFB-100-10
An Adjustable spreader beam model lifts uneven loads and keep them level with increased safety. Includes one upper bail and two specialty designed bail/sling holders. Bails are adjustable in 4" increments. The bails slide between two C-Channels. Meets ASME B30.20-1993 standard. Baked-in powdercoated toughness. Polyester lifting slings sold separately.
Additional Information
Overall Length128-1/2 in.
Overall Height25-1/2 in.
Overall Width6-1/2 in.
Width6.5
Bail Opening WidthUpper: 4 in. / Lower: 3 in.
Lifting Height Max.25-1/2"
Bail Opening HeightUpper: 7-1/2 in. / Lower: 5-3/4 in.
ItemSpreader Beam 10K Cap
MaterialSteel
ColorBlue
Max. Spread120"
Min. Spread24"
Load Capacity10,000 lb.
IncludesIncludes one upper bail and two specialty designed bail/sling holders. Bails are adjustable in 4" increments. The bails slide between two C-channels
FinishPowder Coat
FeaturesDesigned to lift and move uneven and awkward loads; Welded steel construction for heavy duty performance; Adjustable bail to fit a variety of sizes; Large capacity for use with items both large and small
StandardsASME B30.20-1993
OperationOverhead Lifting Devices
For Use with TrolleyMaterial Handling
