category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Grainger_SPTTxxxxMANUALxxab9fb7.pdf
manufacturer:
Vestil
mpn:
SPTT-15
subcategory:
Carts / Trucks / & Dollies
type:
Tilt & Cube Trucks
Data Sheet Product Description

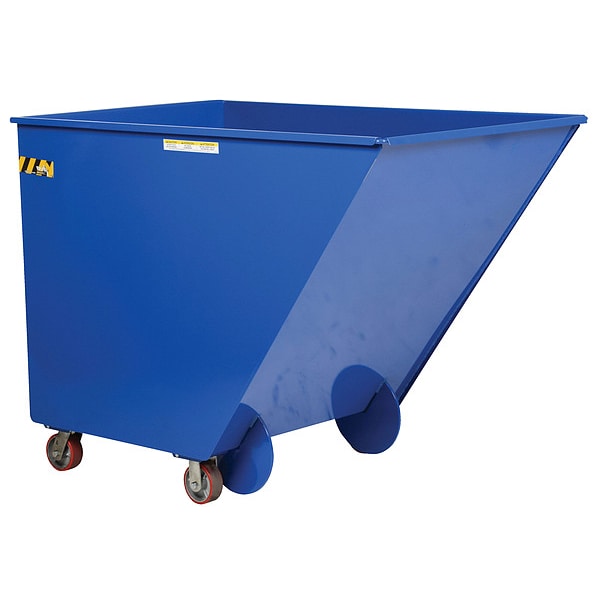

Vestil - SPTT-15
Easy-Dump Steel Tilt Truck, Cubic Foot Capacity 40 cu ft, Load Capacity 2,000 lb, Overall Length 65 1/4 in, Overall Width 38 1/4 in, Overall LxWxH 65 1/4 in x 38 1/4 in x 46 1/8 in, Overall Height 46 1/8 in, Container Material Steel, Color Blue, Handle Type Top & Bottom, Mobility Option Manual, Caster/Wheel Configuration (2) Rigid, (2) Swivel with Brake, Caster/Wheel Mounting Location Standard, Caster Wheel Type Standard, Caster Wheel/Tread Material Polyurethane, Caster Wheel Dia. 5 in
Additional Information
Wheel Diameter5"
Platform Length65.25"
Container Height46 1/8 in
Overall Width38-1/4"
Handle Height36 3/4 in
Overall Height46.1875"
Overall Length65-1/2"
Caster Dia.5"
Caster Mounting Height6 1/2 in
Caster Mounting Plate Size4 in x 4 1/2 in
Caster Wheel Dia.5 in
Caster Wheel Width2 in
Overall LxWxH65 1/4 in x 38 1/4 in x 46 1/8 in
Material Steel
Color Blue
Load Capacity 2000 lb
Item Portable Dump Trucks
Wheel Type Poly
Handle Type Top & Bottom
Assembled No
Color - Hoppers and Cube Trucks Blue
Frame Material Steel
Frame Material - Hoppers and Cube Trucks Steel
Wheel Material Polyurethane
Container Material - Hoppers and Cube Trucks 12 ga. Steel
Includes Removable Push Handle
Caster Material Poly on Steel
Handle Included Yes
Cubic Foot Capacity 40 cu ft.
Cubic Yard Capacity 1.5 cu yd
Container Material Steel
Item - Tilt Trucks Tilt Truck
Caster Configuration (2) Swivel, (2) Rigid
Volume Capacity 1-1/2 cu. yd.
Load Capacity - Hoppers and Cube Trucks 2000 lb.
Container Legend None
Caster Type (2) Rigid, (2) Swivel
Mobility Option Manual
Gauge 14 ga
Capacity 1-1/2 cu. yd.
Application Easily move and empty contents with the balanced design of the portable steel dump truck
Caster Wheel Tread Type/Material Standard Polyurethane
Caster Mounting Plate Bolt Hole Pattern 2 3/4 in x 3 3/8 in
Caster Inside Bolt Hole Spacing 2 5/8 in X 3 in
Caster/Wheel Mounting Location Standard
Caster Mounting Type Plate
Non-Marking Casters/Wheels No
Assembled/Unassembled Unassembled
Caster Wheel/Tread Material Polyurethane
Caster Brake Type Side Pedal Brake
Caster Outside Bolt Hole Spacing 3 in x 3 5/8 in
Caster Frame Material Steel
Caster Wheel Type Standard
Caster/Wheel Configuration (2) Rigid, (2) Swivel with Brake
Caster Core Material Polyurethane
Lid/Cover Type No Lid/Cover
Includes Reinforcing Steel Side Rails Without Reinforcing Side Rails
