category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Vestil Manufacturing Corp_UNIxxxxMANUALxx129581.pdf
manufacturer:
Vestil
mpn:
UNI-2448-2-BLU-230-3
subcategory:
Lifting / Pulling & Positioning
type:
Lifting Tables
Data Sheet Product Description

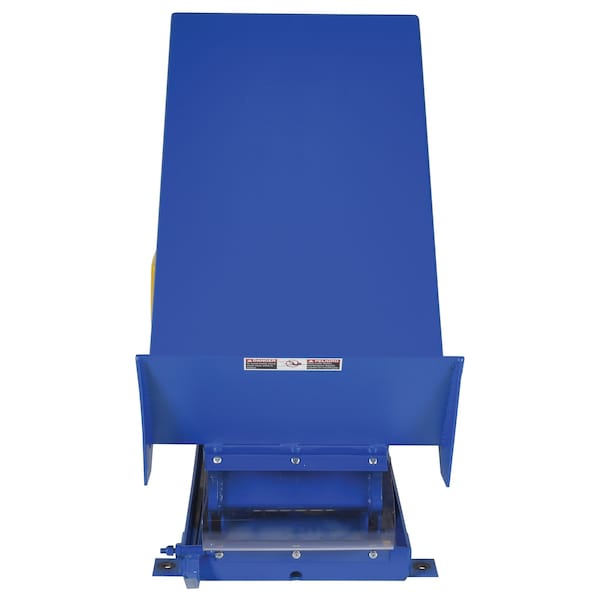

Vestil - UNI-2448-2-BLU-230-3
Lift Table,2K,24x48,Blue,230V,3 Phase
Additional Information
Lifting Height Min.8 in
Platform Length48 in
Overall Length51-1/2 in.
Overall Height20 in.
Platform Width24 in.
Overall Width24 in.
Max. Work Height8 in.
Platform Depth48 in.
Lift Table Item Single Scissor Lift & Tilt Tables
Mobile/Stationary Stationary
Lift Mechanism Hydraulic
Lift Mobility AC Powered
Lift Control Hand Control
Lift Table Platform Style Solid
Load Capacity 2000 lbs
Item Lift Table 24x48 230V 3PH 2K Blue
Frame Material Steel
Phase Three Phase
Voltage 230V
Includes Come's with a high lip, selector pedal, two-button handheld control, integrated maintenance lock, pressure plated pump, pressure compensated flow valve, lowering valve, independent oil return, and an adjustable upward travel switch.
HP 2 hp
Tilting Deg. 40°
Color Blue
Material Steel
Power Source Electric - Corded
