category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Vestil Manufacturing Corp_UNIxxxxMANUALxx129581.pdf
manufacturer:
Vestil
mpn:
UNI-4048-2-BLU-460-3
subcategory:
Lifting / Pulling & Positioning
type:
Lifting Tables
Data Sheet Product Description

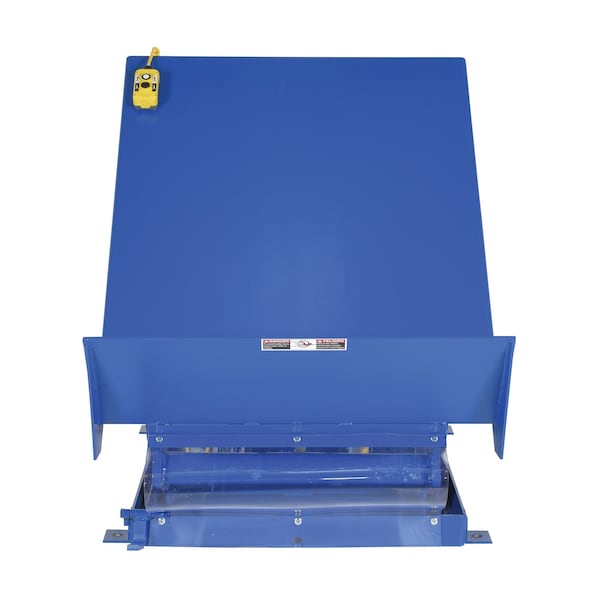

Vestil - UNI-4048-2-BLU-460-3
Lift Table,2K,40x48,Blue,460V,3 Phase
Additional Information
Lifting Height Min.8 in
Platform Length48"
Overall Width40"
Platform Width40 in.
Overall Height20 in.
Overall Length51-1/2 in.
Platform Depth48 in.
Max. Work Height8 in.
Lift Table Item Single Scissor Lift & Tilt Tables
Mobile/Stationary Stationary
Lift Mechanism Hydraulic
Lift Mobility AC Powered
Lift Control Hand Control
Lift Table Platform Style Solid
Load Capacity 2000 lb.
Item Work Platform
Includes Come's with a high lip, selector pedal, two-button handheld control, integrated maintenance lock, pressure plated pump, pressure compensated flow valve, lowering valve, independent oil return, and an adjustable upward travel switch.
Phase Three Phase
HP 2 hp
Frame Material Steel
Voltage 460V
Power Source Electric - Corded
Tilting Deg. 40°
Color Blue
Material Steel
