category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Vestil Manufacturing Corp_UNIxxxxMANUALxx129581.pdf
manufacturer:
Vestil
mpn:
UNI-5448-2-BLU-460-3
subcategory:
Lifting / Pulling & Positioning
type:
Lifting Tables
Data Sheet Product Description

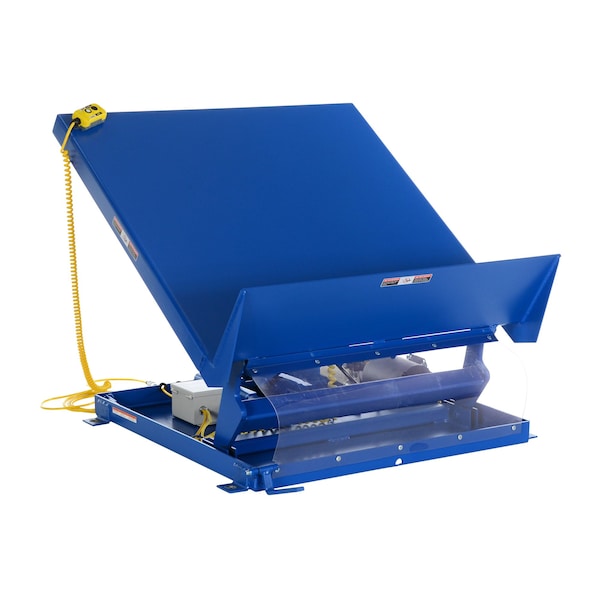

Vestil - UNI-5448-2-BLU-460-3
Lift Table,2K,54x48,Blue,460V,3 Phase
Additional Information
Lifting Height Min.8 in
Platform Length48"
Overall Width54"
Overall Height20 in.
Platform Width54 in.
Overall Length51-1/2 in.
Max. Work Height8 in.
Platform Depth48 in.
Lift Table Item Single Scissor Lift & Tilt Tables
Mobile/Stationary Stationary
Lift Mechanism Hydraulic
Lift Mobility AC Powered
Lift Control Hand Control
Lift Table Platform Style Solid
Load Capacity 2000 lb.
Item Work Platform
HP 2 hp
Frame Material Steel
Includes Come's with a high lip, selector pedal, two-button handheld control, integrated maintenance lock, pressure plated pump, pressure compensated flow valve, lowering valve, independent oil return, and an adjustable upward travel switch.
Voltage 460V
Phase Three Phase
Color Blue
Material Steel
Power Source Electric - Corded
Tilting Deg. 40°
