category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Vestil Manufacturing Corp_VHMSxx30xxf6ea74.pdf
manufacturer:
Vestil
mpn:
VHMS-30
subcategory:
Material Handling Equipment Replacement Parts
type:
Steel Machine Roller
Data Sheet Product Description

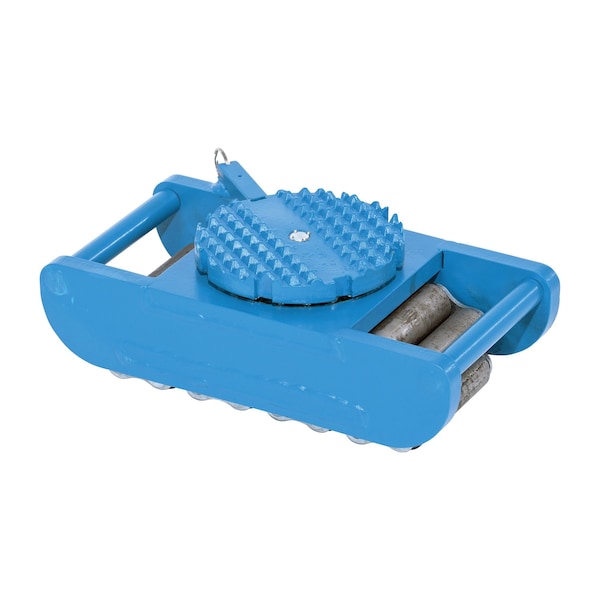

Vestil - VHMS-30
Made of high-strength annealed ductile iron, this steel machine roller has swivel tops that rotate three hundred sixty degrees (360 degrees) on chrome steel ball bearings to allow for easier turning. The rollers form a "tank track" to revolve around a center load bearing plate in the frame to provide maximum maneuverability. The weight of the load is transferred directly from the load bearing plate to the rollers, eliminating axle friction and requiring less power to start and move. This unit is virtually maintenance free.
Additional Information
Overall Width6.5
Depth12.75
Size12.75 x 6.5 x 5
Overall Height5
Overall Length12.75
Length12.75
Width6.5
Height5
Capacity30000
ColorOrange
FeaturesRollers revolve around center load bearing plate in frame to provide maximum maneuverability. Load weight is transferred directly from the load bearing plate to the rollers requiring less power to start and move. High-strength annealed ductile iron provides a tough long lasting unit. Unit construction is virtually maintenance free
ApplicationThis steel machine roller has swivel tops that rotate three hundred sixty degrees (360 degrees) on chrome steel ball bearings to allow for easier turning.
Weight49
MaterialSteel
