category:
Definite Purpose
manufacturer:
Weg
mpn:
00536OS1CCD182/4Y
subcategory:
Compressor Duty
weight:
49.2
Product Description

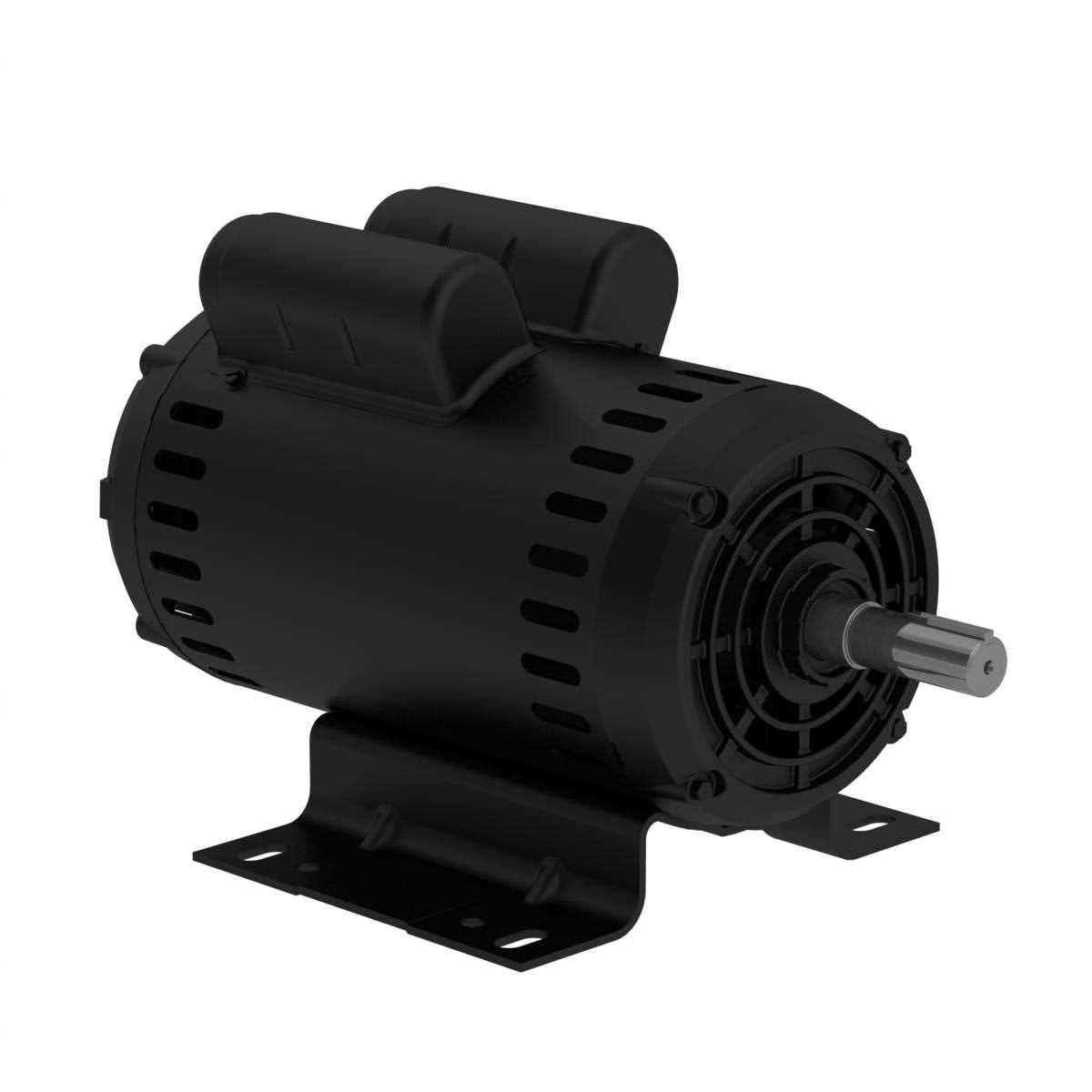

Weg - 00536OS1CCD182/4Y Motor especially conceived to meet the high torques required for application on air compressors. Ball bearings and manual thermal protection, among other electrical and mechanical characteristics, are available as standard feature in all the line and ensure long service life of the motor.
Additional Information
Catalog Number00536OS1CCD182/4Y
StandardNEMA MG-1
Frequency60 Hz
Voltage208-230 V
Number of poles2
Degree of ProtectionIP21
Synchronous speed3600 rpm
Output rating5 HP
MountingF-1
FlangeWithout
Terminal box¹Without Terminal Box
EnclosureIC01 - ODP
Frame182/4Y
Output5 HP (3.7 kW)
Rated speed3455 RPM
Slip0.0403
Rated voltage208-230 V
Rated current21.0-19.1 A
L. R. Amperes137-124 A
LRC6.5x(Code G)
No load current0.000-3.70 A
Rated torque7.60 ft.lb
Locked rotor torque2.2
Breakdown torque2
Locked rotor time10s (cold) 6s (hot)
Moment of inertia (J)0.0712 sq.ft.lb
Insulation ClassF
Service factor1.15
Temperature rise105 K
Duty CycleCOMPRESSOR DUTY
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹CCW
Frame MaterialRolled Steel
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingOnly primer
Grounding LugsSingle
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Manual
Resilient BaseWithout
