category:
Farm Duty
manufacturer:
Weg
mpn:
00518ES1DFD184T-S
weight:
112

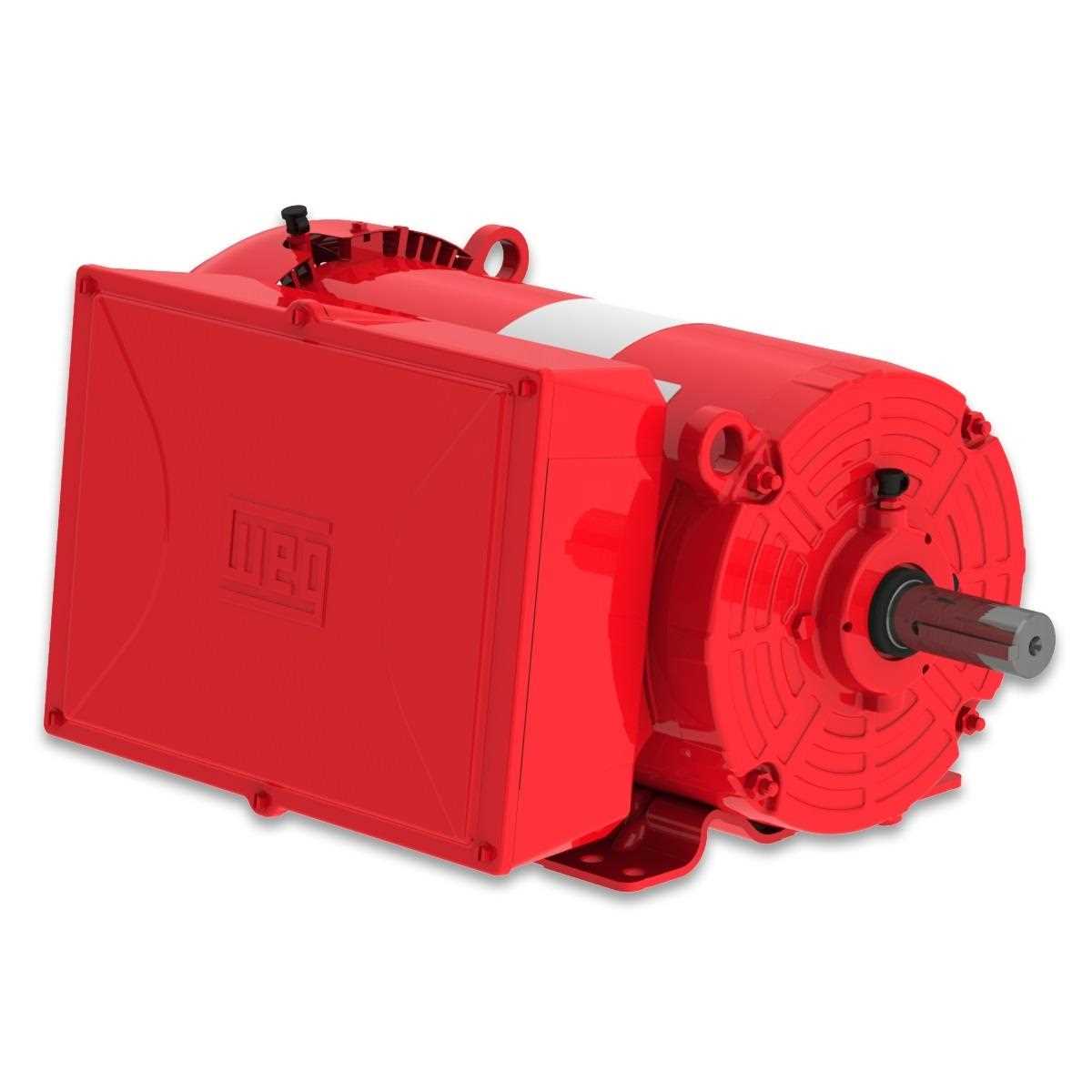

Catalog Number:00518ES1DFD184T-S
StandardNEMA MG-1
Frequency60 Hz
Voltage230 V
Number of poles4
Degree of ProtectionIP55
Synchronous speed1800 rpm
Output rating5 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame182/4T
Output5 HP (3.7 kW)
Rated speed1760 RPM
Slip0.0222
Rated voltage230 V
Rated current19.9 A
L. R. Amperes163 A
LRC8.2x(Code J)
No load current5.00 A
Rated torque14.9 ft.lb
Locked rotor torque3.2
Breakdown torque3
Locked rotor time19s (cold) 11s (hot)
Moment of inertia (J)0.4637 sq.ft.lb
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²59.0 dB(A)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole1.377"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 3003 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Manual
Bolt MaterialCarbon Steel
Resilient BaseWithout
