manufacturer:
Western Enterprises
mpn:
M1-540-15FG
weight:
2.73

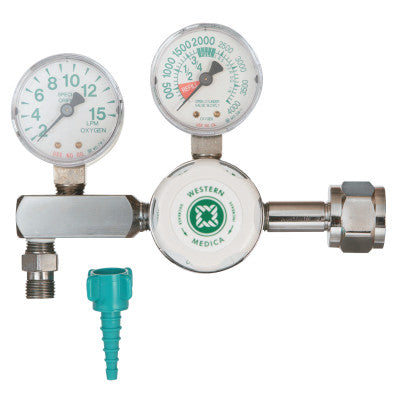

Product Description
| Manufacturer Part Number | M1-540-15FG |
|---|---|
| GTIN | 698944084936 |
| Family | Western Enterprises M1 Series Flow Gauge Regulators |
| Manufacturer | Western Enterprises |
| Manufacturer URL | http://www.westernenterprises.com |
| Hazmat | N |
| Testing and Approvals | UL Listed; Tested to CGA Standards which Include Ignition Testing |
| Country of Origin | US |
| Features | Chrome-plated brass body with all brass high-pressure chamber Internal reseating relief valve protects against overpressurization Standard DISS 1240 outlet connection and plastic swivel hose barb |
| Diaphragm Material | Neoprene |
| Filter Material | Sintered |
| Flow Range | 2 - 15 LPM |
| Gas Type | Oxygen |
| Gauge Size | 2 in |
| Inlet Connection | CGA-540 Nut and Nipple |
| Inlet Pressure [Max] | 3,000 psi |
| Length [Nom] | 2 in |
| Outlet Pressure [Max] | 120 PSIG |
| Type | Single-Stage |
| Wt. | 1 lb |
