manufacturer:
Western Enterprises
mpn:
M1-540-P
weight:
2.35
Product Description
| Manufacturer Part Number | M1-540-P |
|---|---|
| GTIN | |

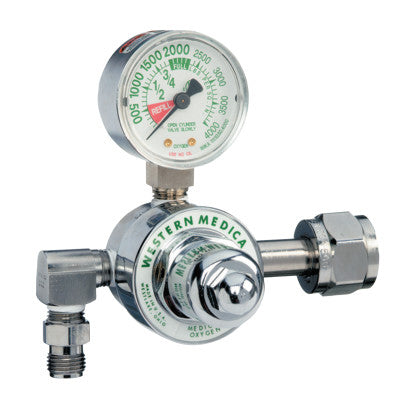

| Family | Western Enterprises M1 Series Preset Pressure Gauge Regulators |
| Manufacturer | Western Enterprises |
| Manufacturer URL | http://www.westernenterprises.com |
| Hazmat | N |
| Testing and Approvals | UL Listed; Tested to CGA Standards which Include Ignition Testing |
| Country of Origin | US |
| Features | Chrome-plated brass body with all brass high-pressure chamber 1100 SCFH air maximum rated flow at 2000 psi Internal reseating relief valve protects against overpressurization DISS gas specific outlets |
| Diaphragm Material | Neoprene |
| Filter Material | Sintered |
| Flow Range | 0 - 100 |
| Gas Type | Oxygen |
| Gauge Size | 2 in |
| Inlet Connection | CGA-540 Nut and Nipple |
| Inlet Pressure [Max] | 3,000 psi |
| Length [Nom] | 6.2 in |
| Outlet Pressure [Max] | 50 psi |
| Wt. | 3.1 lb |
