manufacturer:
Western Enterprises
mpn:
RS-11-20
weight:
5.15

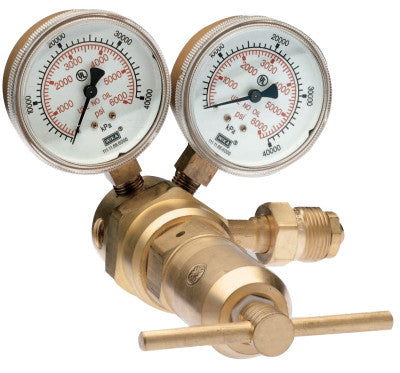

Product Description
| Manufacturer Part Number | RS-11-20 |
|---|---|
| GTIN | 698944045500 |
| Family | Western Enterprises RS Series High Delivery Pressure Regulators |
| Manufacturer | Western Enterprises |
| Manufacturer URL | http://www.westernenterprises.com |
| Hazmat | N |
| Country of Origin | US |
| Features | Machined brass body and bonnet resists corrosion and extends service life Dependable brass piston design KEL-F seat assembly withstands high service pressures Dual inlet filtering extends regulator life Outlet 180 opposed to inlet |
| Body Material | Brass |
| Flow Cap. [Max] | 2,850 SCFH |
| Flow Range | 2,850 SCFH Nitrogen |
| Gas Type | Inert Gas |
| Gauge Size | 2 1/2 in |
| Height [Nom] | 5 1/2 in |
| Inlet Connection | CGA 580 |
| Inlet Pressure [Max] | 3,000 psi |
| Length [Nom] | 6 1/2 in |
| Outlet Connection | 1/4 in. NPT(F) |
| Outlet Pressure [Max] | 1,500 psi; 2,000 psi |
| Width [Nom] | 7 in |
| Wt. | 4 1/2 lb |
