category:
Thermostats
manufacturer:
White Rodgers
mpn:
1F75H-21NP
subcategory:
Non-Programmable
Product Description

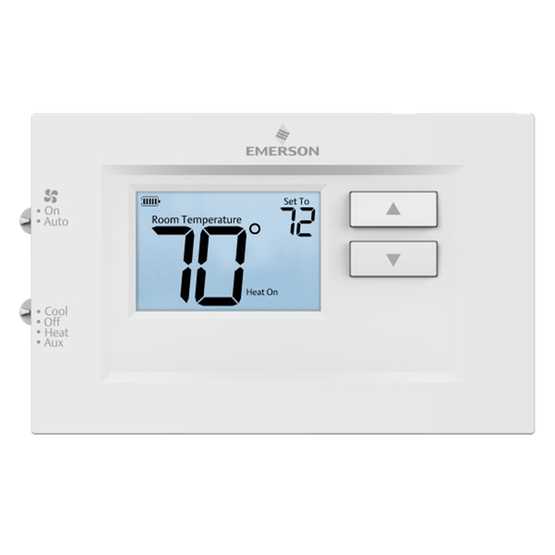

White Rodgers - 1F75H-21NP The 70 Series provides an easy-to-use thermostat with a modern design that helps reduce complexity for the customer and in turn helps reduce contractor callbacks. Easy to install with a backplate common to the 80 Series and Sensi thermostats to enable easy upgrade. The 70 Series presents a good value from a reliable brand. It„s the right thermostat for both the contractor and the customer.
Features:
- Easy to install with built-in level, simple set-up menu and separate subbase
- Non-Programmable
- Heat Pump models include dual fuel control, no outdoor sensor required
- Adjustable heat/cool temperature limits
- 5 year limited warranty for professionals
Additional Information
Voltage20-30 Vac, NEC Class II 50/60Hz
Millivolt CompatibleNo
TerminalsR,C,W2,E,Y,O/B,G
Terminal Load1.5 Amps per terminal, 2.5 Amps maximum (all terminals combined)
Operating Humidity0%-90% RH non-condensing max.
Heat Differential (Conventional / Gas / Oil / Elec)Fast 0.5°F, Med. 0.75°, Slow 1.9°F
Cool Differential (Central Air)Fast 0.9°F, Med. 1.2°, Slow 1.7°F
Heat Pump Differential (Heat and Cool)Fast 0.9°F, Med. 1.2°, Slow 1.7°F
Aux. Heat DifferentialFast 0.5°F, Med. 0.75°, Slow 1.9°F
Economizer ConnectionsNo
Humidity ControlNo
Heat Pump Dual Fuel ControlYes, No Sensor Required
Heat Pump Auxiliary Lockout Control - Outdoor Sensor OptionNone
Power SourceBattery, Hardwire
Auto Changeover (Heat/Cool)No
Fan OptionAuto, On
Filter Change ReminderNo
Energy Mgt. Recovery/Early StartNo
Keypad LockoutNo
Set-Point Temperature LimitsYes
Display Type3.0 square in.
BacklightYes
Battery Power RatingmV to 30 Vac
3-Wire Zone Valve ConnectionsNo
