category:
Thermostats
country_of_origin:
TW
manufacturer:
White Rodgers
mpn:
1F95-0680
subcategory:
Programmable
Product Description

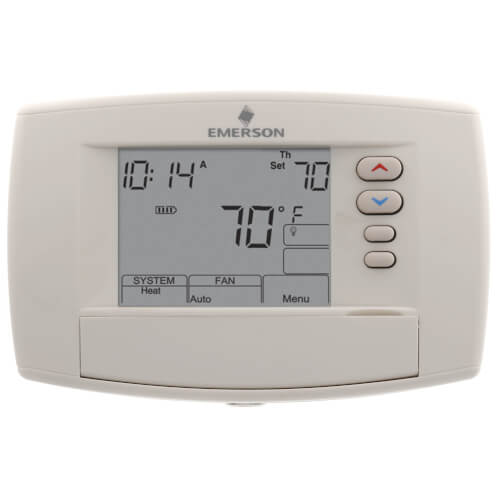

White Rodgers - 1F95-0680 Commercial Thermostat offering more premium features than higher priced competitive models.
Features:
- Universal models quickly configure for single stage, multi-stage or heat pump
- Heat pump dual fuel option with use of outdoor sensor or can be used with a fossil fuel kit supplied by equipment OEM
- Easy Reader model is easy to read and easy to use.
- Commercial offers occupied damper or economizer control and locking cover and subbase
- Keypad lockout and set-point temperature limits
Additional Information
Voltage20 to 30 Vac 50/60 Hz
Amp Rating1.5 Amps per terminal, 2.5 Amps maximum (all terminals combined)
Set-point Range45 to 99°F (7 to 37°C)
Typical ApplicationsGas/Oil/Electric
Stages Heat/CoolUniversal - Single Stage 1H/1C, Multi-Stage 2H/2C, Heat Pump 4H/2C
StyleHorizontal
Millivolt CompatibleYes
TerminalsRC, RH, C, W/E, W2, Y, Y2, O/B, G, L, 6, +, S, -, A1
Economizer ConnectionsYes
Humidity ControlNo
Heat Pump Dual Fuel ControlYes, Optional Outdoor Sensor Provides Outdoor Temperature Setting to Lockout the Heat Pump and Switch to Gas Heat or Electric Heat
Heat Pump Auxiliary Lockout Control - Outdoor Sensor OptionOutdoor Sensor Provides Outdoor Temperature Setting to Lockout Auxiliary Heat
Power SourceBattery, Hardwire, Power Stealing
Auto Changeover (Heat/Cool)Yes
Fan OptionAuto, On, Programmable Fan, Comfort Circulating Fan or Occupancy Fan Option with Selectable Pre-Purge (1-3 Hours)
Filter Change ReminderYes
Energy Mgt. Recovery/Early StartYes
Keypad LockoutTotal or Partial
Set-Point Temperature LimitsYes
Display Type6 square in.
BacklightKey Press or Continuous with Common Wire
3-Wire Zone Valve ConnectionsYes
Program OptionsProgrammable - 7 Day, 5+1+1 Day or Non-Programmable
Program Periods Per Day Options4, 2, None
Remote Sensor Options1 Indoor or Outdoor
