category:
Thermostats
country_of_origin:
TW
manufacturer:
White Rodgers
mpn:
1F95-1291
subcategory:
Programmable
Product Description

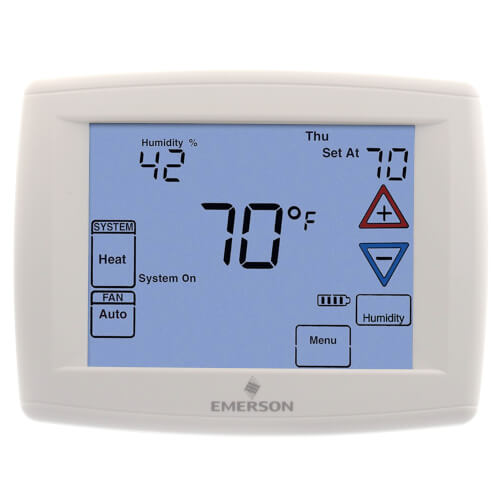

White Rodgers - 1F95-1291 Universal, Commercial, Humidity Control and Single Stage Thermostats provide ultimate comfort, features and performance.
Features:
- Universal models quickly configure for single stage, multi-stage or heat pump
- Heat pump dual fuel option (with or without outdoor sensor) eliminates the need for a fossil fuel kit
- Humidification/dehumidification control
- Commercial model offers occupied damper or economizer control
- Keypad lockout and set-point temperature limits
Additional Information
Voltage20 to 30 Vac 50/60 Hz
Amp Rating1.5 Amps per terminal, 2.5 Amps maximum (all terminals combined)
Set-point Range45 to 99°F (7 to 37°C)
Typical ApplicationsGas/Oil/Electric
Stages Heat/CoolUniversal - Single Stage 1H/1C, Multi-Stage 2H/2C, Heat Pump 4H/2C
StyleHorizontal
Millivolt CompatibleYes
TerminalsRC, RH, C, W/E, W2, Y, Y2, O/B, G, L, 6, +, S, -, DHM, HM
Economizer ConnectionsNo
Humidity ControlYes, Humidification and Dehumidification Option
Heat Pump Dual Fuel ControlYes, Logic Option - No Sensor Required or Outdoor Sensor Option - Outdoor Sensor Provides Outdoor Temperature Setting to Lockout the Heat Pump and Switch to Gas Heat
Heat Pump Auxiliary Lockout Control - Outdoor Sensor OptionOutdoor Sensor Provides Outdoor Temperature Setting to Lockout Auxiliary Heat
Power SourceBattery, Hardwire, Power Stealing
Auto Changeover (Heat/Cool)Yes
Fan OptionAuto, On, Programmable Fan or Comfort Circulating Fan
Filter Change ReminderYes
Energy Mgt. Recovery/Early StartYes
Keypad LockoutTotal or Partial
Set-Point Temperature LimitsYes
Display Type12 square in.
BacklightKey Press or Continuous with Common Wire
3-Wire Zone Valve ConnectionsYes
Program OptionsProgrammable - 7 Day, 5+1+1 Day or Non-Programmable
Program Periods Per Day Options4, 2, None
Remote Sensor Options1 Indoor or Outdoor
